2007 Wrangler JK Factory Service Manual 23 - BODY

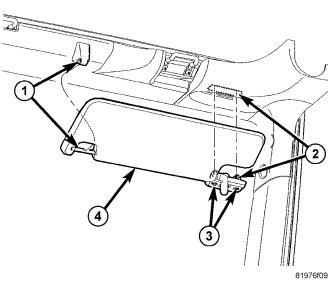

SUNVISOR

REMOVAL




1. Release the visor from the support (1).
2. Remove the screws (3) and remove the visor (4).

INSTALLATION




1. Position the visor (4) up to the windshield trim (2) and install the screws (3).
2. Secure the visor into the support (1).
