INSTALLATION
SHIFT LEVER

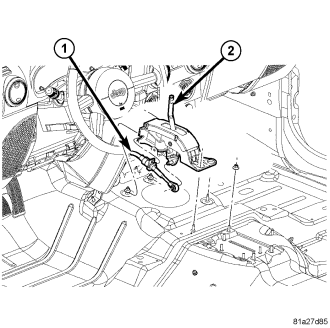

1. Position the shift mechanism over the shifter retaining studs on the floor pan.
2. Install the nuts to hold the shifter mechanism to the floor pan. Tighten the nuts to 11.9 N·m (105 in.lbs.).
3. Verify that the floor shifter is in the 4L position.

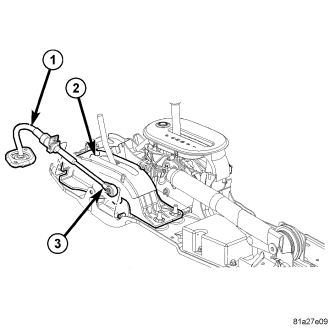

4. Connect the transfer case shift cable to the shift lever body and pin.
5. Install any floor console components previously removed. (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION)
6. Check for proper transfer case shifter operation.
INSTALLATION
1. Position knob hole over the gearshift mechanism and align the shift pattern.
2. Verify that shift pattern is aligned properly.
3. Strike knob with rubber mallet to engage knob to mechanism.
