REMOVAL
BULB
1. Disconnect and isolate the battery negative cable.

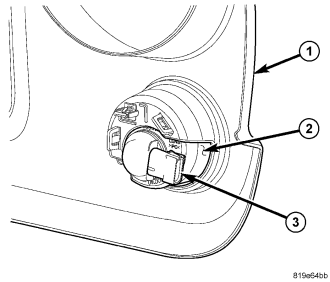

2. Reach behind the lower outboard corner of the grille panel (1) to access and disconnect the wire harness connector from the bulb socket connector receptacle (3) on the back of the park/turn signal lamp (2).
3. Firmly grasp the bulb socket on the back of the lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
4. Pull the socket and bulb straight out from the keyed opening in the housing.
5. Pull the base of the bulb straight out of the socket.
LAMP
1. Disconnect and isolate the battery negative cable.

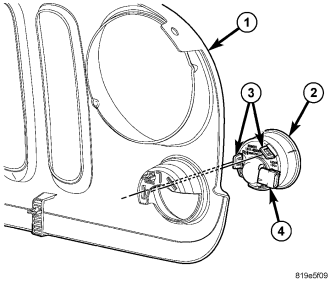

2. Reach behind the lower outboard corner of the grille panel (1) to access and release the two integral park/turn signal lamp (2) latch features (3) and push the lamp out through the face of the grille panel.
3. From the face of the grille panel, pull the lamp out far enough to access and disconnect the wire harness connector from the bulb socket connector receptacle (4) on the back of the lamp.
4. Remove the lamp from the vehicle.
