POWER WINDOW SWITCH
REMOVAL
| Front | Refer to FRONT for removal procedure. |
| Rear | Refer to REAR for removal procedure. |
FRONT
1. Disconnect and isolate the battery negative cable.

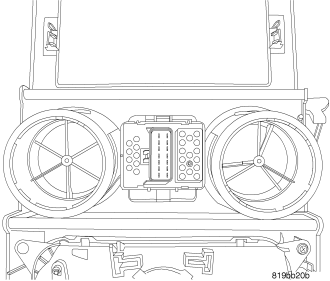

2. Remove the center bezel.
3. Disconnect electrical connector.
4. Remove switch from assembly.
REAR
1. Disconnect and isolate the battery negative cable.
2. Install switch to assembly.
3. Connect electrical connectors.
4. Install the center bezel.
5. Connect the battery negative cable.
INSTALLATION
| Front | Refer to FRONT installation procedure. |
| Rear | Refer to REAR installation procedure. |
FRONT
1. Connect electrical harness connector to switch.
2. Align switch and press into position.
3. Install the center bezel.
4. Connect battery negative cable.
REAR
1. Connect electrical harness connector to switch.
2. Align switch and press into position.
3. Connect battery negative cable.
