REMOVAL
GAS
CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
1. Remove the air box assembly (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL)..

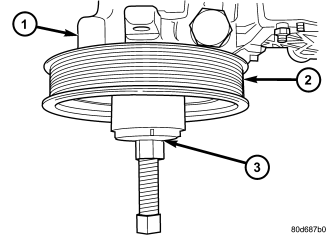

2. Remove the pulley (2) from the pump using (OTC® 7185) power steering pulley removal tool or equivalent (3).
DIESEL
1. Remove the air cleaner box (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL).
2. Remove the air inlet tube (1).
3. Remove the serpentine drive belt.
4. Remove the three bolts (4) securing the pulley (3) to the pump (2).
