INSTALLATION
3.8L

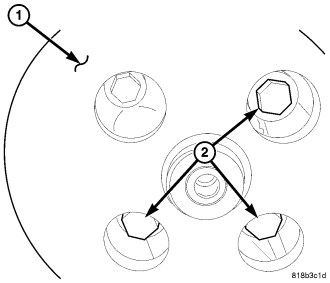

1. Install pulley (1) on pump (if removed). (Refer to 19 - STEERING/PUMP/PULLEY - INSTALLATION).
2. Install pump on the engine.
3. Install 3 pump mounting bolts (2) and tighten to 26 N·m (19 ft. lbs.).

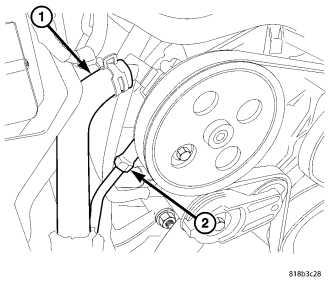

4. Install the pressure line on the pump and tighten to 31 N·m (23 ft. lbs.).
5. Install supply hose on pump.
6. Install drive belt, (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
7. Fill and bleed the power steering system (Refer to 19 - STEERING - STANDARD PROCEDURE).
8. Check for leaks.
9. Install the air box assembly (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION).
2.8L-DIESEL
1. Install the pump to the vehicle.

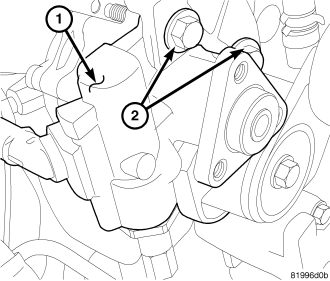

2. Install the three bolts (2) securing the pump (1) to the engine and tighten to 47 N·m (35 ft. lbs.)..

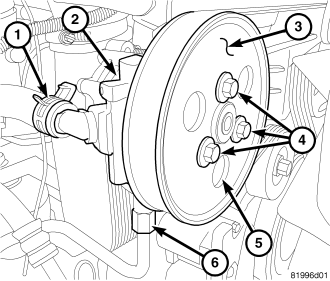

3. Install the power steering hoses (1&6). Tighten to 28 N·m (21 ft. lbs.).
4. Install the power steering pulley to the pump.
5. Install the three bolts (4) securing the pulley (3) to the pump (2).
6. Install the serpentine belt.

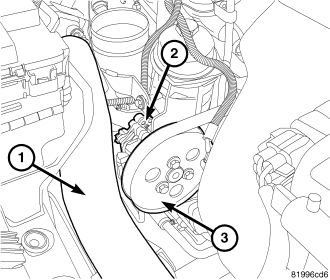

7. Install the air inlet tube (1).
8. Install the air cleaner box (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION).
9. Refill the power steering fluid and bleed the system (Refer to 19 - STEERING - STANDARD PROCEDURE).
