BEARINGS-DIFFERENTIAL CASE
REMOVAL
1. Remove differential (3) from housing.

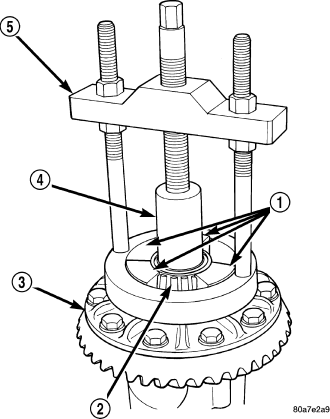

2. Remove bearings (2) from differential case with Puller C-293-PA (5), Adapters C-293-39 (1) and Plug SP-3289 (4).
INSTALLATION

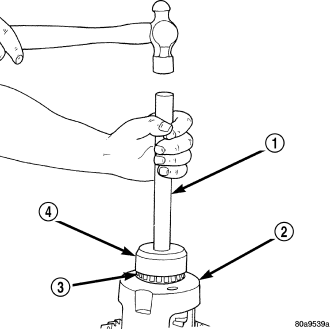

1. Install differential (2) side bearings (3) with Installer C-3716-A (4) with Handle C-4171 (1).
2. Install differential in the housing.
