COVER-DIFFERENTIAL
REMOVAL
1. With transmission in neutral, position vehicle on hoist.

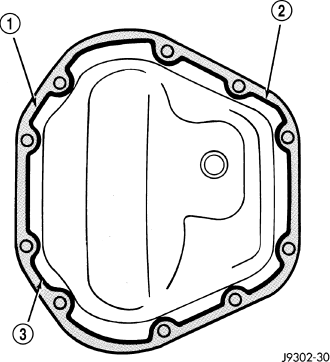

2. Remove fill plug (1).
3. Remove differential cover (2) bolts.
4. Remove cover and drain lubricant.
INSTALLATION
1. Apply a 6.35mm (1/4 in.) bead of Mopar Silicone Rubber Sealant or equivalent to the housing cover.
CAUTION: If housing cover is not installed within 3 to 5 minutes, the cover must be cleaned and new RTV applied. Failure to heed caution may result in damage.
2. Install cover and identification tag. Tighten cover bolts in a criss-cross pattern to 41 N·m (30 ft. lbs.).
3. Fill differential to specifications.
4. Install fill plug and tighten to 34 N·m (25 ft. lbs.).
