BEARINGS-DIFFERENTIAL CASE
REMOVAL
1. Remove differential case from axle housing.

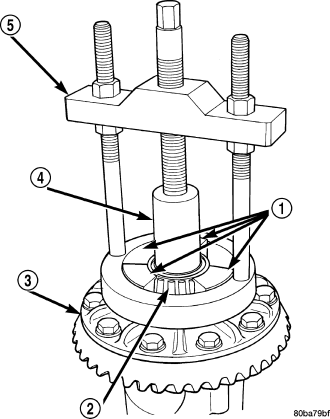

2. Remove bearings (2) from the differential case with Puller C-293-PA (5), Adapters C-293-47 (1) and Plug C-293-3 (4).
NOTE: Use the same tools for the Tru-Lok differential.
INSTALLATION

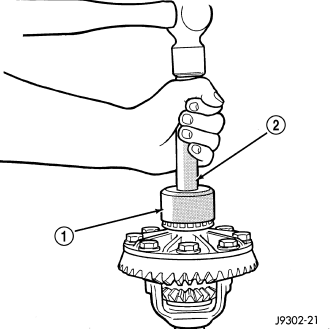

1. Install differential side bearings on Tru-Lok differentials with Installer C-4213 (1) and Handle C-4171 (2).
2. Install differential side bearings on open or Trac-Lok® differentials with Installer D-156 (1) and Handle C-4171 (2).
3. Install differential into the housing.
