COIL-DIFFERENTIAL
REMOVAL
1. Remove differential case from axle housing.

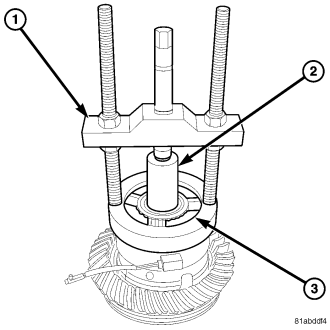

2. Remove bearing from the coil side of the differential case with Puller C-293-PA (1), Plug C-293-3 (2), and Adapters C-293-47 (3).

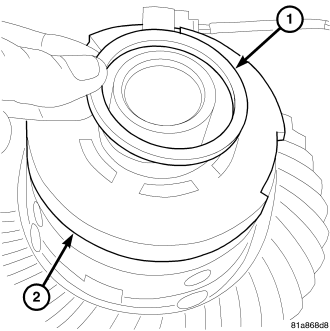

3. Remove thrust washer (1) from differential case and coil (2).

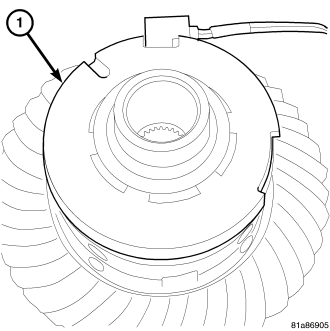

4. Remove coil (1) from differential case.
INSTALLATION
1. Install coil (1) on differential case.
2. Install thrust washer (1) on top of the coil (2).

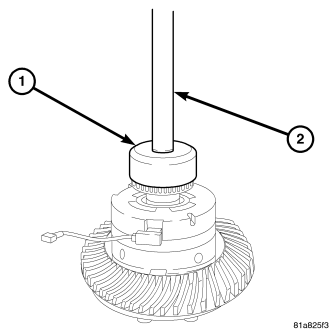

3. Install differential side bearing with Installer C-4213 (1) and Handle C-4171 (2).
4. Install differential into the housing.
