SWITCH-LOCKER
REMOVAL

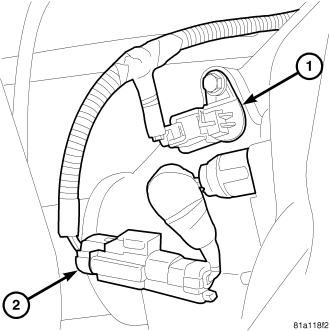

1. Remove Tru-Lok harness from the coil (1) and indicator switch (2).

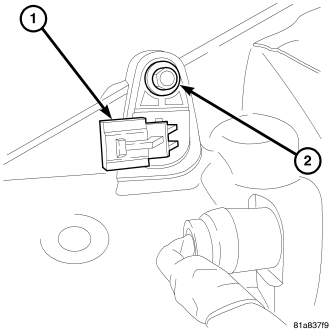

2. Remove Tru-Lok coil connector (1) bolt (2).
3. Remove Tru-Lok coil connector from the axle housing and remove coil harness (1) from the connector (2).
4. Remove differential.

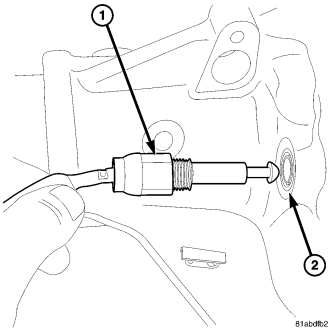

5. Remove Tru-Lok indictor switch (1) from differential housing (2).
INSTALLATION
1. Install indicator switch (1) into differential housing (2).
2. Install differential.
3. Install Tru-Lok coil connector (2) to the coil harness (1).
4. Install Tru-Lok coil connector (1) bolt (2).
5. Install Tru-Lok harness to the coil (1) and indicator switch (2).
