HANDLE
REMOVAL

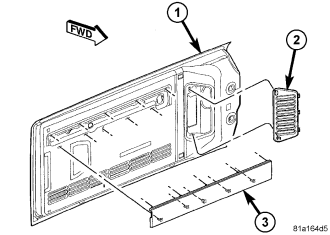

1. Using a trim stick C-4755 or equivalent, remove the inner latch trim (2).

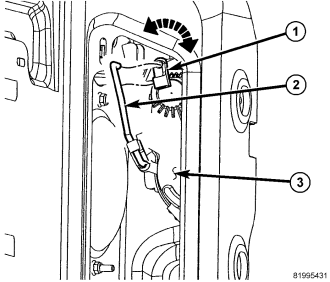

2. Disconnect the latch rod (2) from the handle (1).

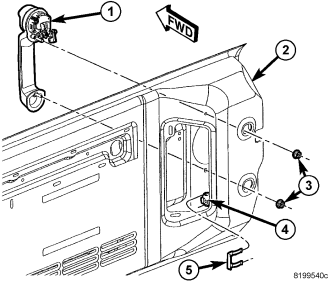

3. Remove the nuts (3) and remove the handle (1).
INSTALLATION
1. Install the handle (1) and install the nuts (3).
2. Tighten the nuts to 4.5 Nm (40 in. lbs.)
3. Connect the latch rod (2) to the handle (1).
4. Position the latch trim (2) onto the tailgate opening and seat fully.
