LATCH
REMOVAL
1. Using a trim stick C-4755 or equivalent, remove the inner latch trim (2).

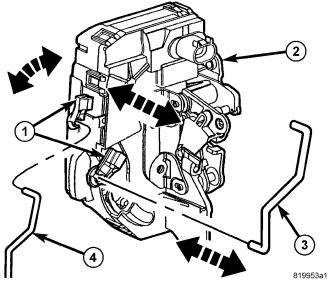

2. Release the rod clips (1) and disconnect the latch rods (3 and 4).

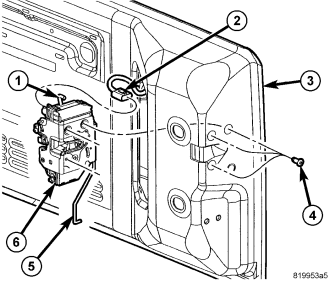

3. Remove the screws (4) and remove the latch (6).
4. Disconnect the electrical connector (2).
INSTALLATION
1. Connect the electrical connector (2) and install the latch into the tail gate (3).
2. Install the screws (4) and tighten to 8 N·m (71 in. lbs.).
3. Connect the latch rods (3 and 4) and secure the clips (1) fully.
4. Position the latch trim (2) onto the tailgate opening and seat fully.
5. Adjust the latch if necessary, (Refer to 23 - BODY/TAILGATE/LATCH - ADJUSTMENTS).
