B1A48-INTRUSION SENSOR 1 INTERNAL

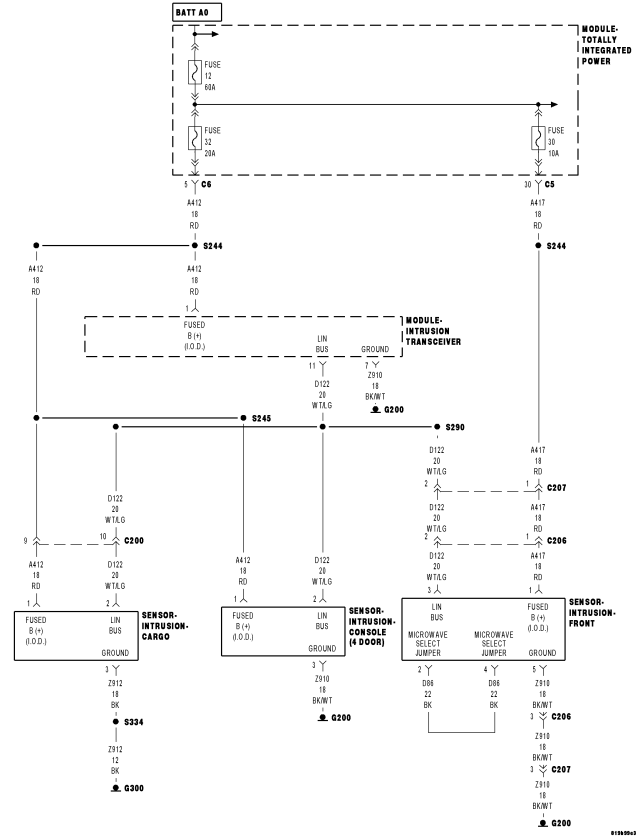

For a complete wiring diagram Refer to Section 8W
- When Monitored:
Continuously while the VTSS is armed.
- Set Condition:
If the Intrusion Transceiver Module does not receive the correct message back from the Intrusion Sensor.
| Possible Causes |
| CARGO INTRUSION SENSOR |
Diagnostic Test
1. INTERMITTENT DTCWith the scan tool, erase the current Intrusion Transceiver Module DTC's.
Turn the ignition off.
Arm the VTSS and wait 1 minute.
Disarm the VTSS and turn the ignition on.
With the scan tool, read ITM DTC's.
Does the scan tool display the same DTC?
Yes
- Replace the Cargo Intrusion Sensor in accordance with the Service Information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- The condition that caused this symptom is currently not present. Test complete.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
