REMOVAL
FRONT
CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass may be damaged.
NOTE: The notched end of the wiper element flexor should always be oriented towards the end of the wiper blade that is nearest to the wiper pivot.

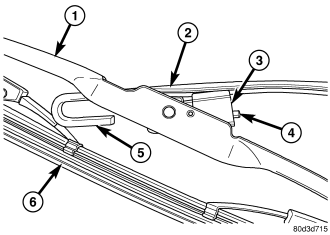

1. Lift the wiper arm (2) to raise the wiper blade and element (6) off of the glass, until the wiper arm hinge is in its over-center position.
2. To remove the blade from the arm, depress the latch release tab (4) on the pivot block (3) under the tip of the arm and slide the blade away from the tip towards the pivot end of the arm far enough to disengage the pivot block from the hook formation (5) on the end of the arm.
3. Extract the hook formation on the tip of the wiper arm through the opening in the wiper blade superstructure (1) just ahead of the pivot block.
4. Gently lower the tip of the wiper arm onto the glass.
REAR
CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass may be damaged.

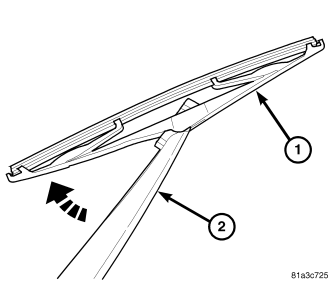

1. Lift the wiper arm (2) to raise the wiper blade and element (1) off of the glass.
2. To remove the blade from the arm, swing the end of the wiper blade nearest to the wiper motor away from the wiper arm to its travel limit.
3. Now press the end of the wiper blade nearest to the wiper motor away from the wiper arm against its stop far enough to unsnap the wiper blade pivot pin from the latch features on the underside of the wiper arm.
4. Gently lower the tip of the wiper arm onto the glass.
