Front Axle - 186FBI - 2012 Jeep Wrangler JK Factory Service Manual

DIAGNOSIS AND TESTING - FRONT AXLE - 186FBI

DIAGNOSTIC CHART

Condition	Possible Causes	Correction
Wheel Noise	1. Wheel loose.	1. Tighten loose nuts.
Wheel Noise	2. Faulty, brinelled wheel bearing.	2. Replace bearing.
Axle Shaft Noise	1. Misaligned axle tube.	1. Inspect axle tube alignment. Correct as necessary.
	2. Bent or sprung axle shaft.	2. Inspect and correct as necessary.
	3. End play in pinion bearings.	3. Refer to pinion pre-load information and correct as necessary.
	4. Excessive ring and pinion gear backlash.	4. Check and adjustment ring and pinion gear backlash.
	5. Improper pinion bearing adjustments.	5. Adjust the pinion bearings pre-load.
	6. Loose pinion flange nut.	6. Tighten pinion flange nut to specifications.
	7. Scuffed gear tooth contact surfaces.	7. Inspect and replace as necessary.
Axle Shaft Broke	1. Misaligned axle tube.	1. Replace broken shaft after correcting tube mis-alignment.
	2 Vehicle overloaded.	2. Replace broken shaft and avoid excessive weight on vehicle.
	3. Erratic clutch operation.	3. Replace broken shaft and avoid or correct erratic clutch operation.
	4. Grabbing clutch.	4. Replace broken shaft and inspect and repair clutch as necessary.
Differential Cracked	1. Improper differential bearing adjustment.	1. Replace case, inspect gears and bearings for further damage. Set differential bearing pre-load properly.
	2. Excessive ring gear backlash.	2. Replace case and inspect gears and bearings for further damage. Set ring gear backlash.
	3. Vehicle overloaded.	3. Replace case and inspect gears and bearings for further damage. Avoid excessive vehicle weight.
	4. Erratic clutch operation.	4. Replace case and inspect gears and bearings for further damage. Avoid erratic use of clutch.
Differential Gears Scored	1. Insufficient lubrication.	1. Replace scored gears. Fill differential with the correct fluid type and quantity.
	2. Improper grade of lubricant.	2. Replace scored gears. Fill differential with the correct fluid type and quantity.
	3. Excessive spinning of one wheel/tire.	3. Replace scored gears. Inspect all gears, pinion bores, and shaft for damage. Service as necessary.
Loss Of Lubricant	1. Lubricant level too high.	1. Drain lubricant to the correct level.
	2. Worn axle shaft seals.	2. Replace seals.
	3. Cracked differential housing.	3. Repair as necessary.
	4. Worn pinion seal.	4. Replace seal.
	5. Worn/scored flange.	5. Replace flange and seal.
	6. Differential cover not sealed.	6. Remove, clean, and seal cover.
Axle Overheating	1. Lubricant level low.	1. Fill differential to correct level.
	2. Improper grade of lubricant.	2. Fill differential with the correct fluid type and quantity.
	3. Bearing pre-loads too high.	3. Adjust bearing pre-loads.
	4. Insufficient ring gear backlash.	4. Adjust ring gear backlash.
Gear Teeth Broke	1. Overloading.	1. Replace gears. Examine other gears and bearings for possible damage.
	2. Erratic clutch operation.	2. Replace gears and examine the remaining parts for damage. Avoid erratic clutch operation.
	3. Ice-spotted pavement.	3. Replace gears and examine remaining parts for damage.
	4. Improper adjustments.	4. Replace gears and examine remaining parts for damage. Ensure ring gear backlash is correct.
Axle Noise	1. Insufficient lubricant.	1. Fill differential with the correct fluid type and quantity.
	2. Improper ring and pinion gear adjustment.	2. Check ring and pinion gear contact pattern.
	3. Unmatched ring gear and pinion.	3. Replace gears with a matched ring gear and pinion.
	4. Worn teeth on ring and pinion gears.	4. Replace ring and pinion gears.
	5. Loose pinion bearings.	5. Adjust pinion bearing pre-load.
	6. Loose differential bearings.	6. Adjust differential bearing pre-load.
	7. Loose or sprung ring gear.	7. Measure ring gear run-out. Replace components as necessary.
	8. Loose differential bearing cap bolts.	8. Inspect differential components and replace as necessary. Ensure bearing caps are torqued to the proper specification.
	9. Housing not machined properly.	9. Replace housing.

GEAR NOISE

Axle gear noise can be caused by insufficient lubricant, incorrect backlash, tooth contact, worn/damaged gears or the carrier housing not having the proper offset and squareness.

Gear noise usually happens at a specific speed range. The noise can also occur during a specific type of driving condition. These conditions are acceleration, deceleration, coast, or constant load.

When road testing, first warm-up the axle fluid by driving the vehicle at least 5 miles and then accelerate the vehicle to the speed range where the noise is the greatest. Shift out-of-gear and coast through the peak-noise range. If the noise stops or changes greatly:

Check for insufficient lubricant.
Incorrect ring gear backlash.
Gear damage.

Differential side gears and pinions can be checked by turning the vehicle. They usually do not cause noise during straight-ahead driving when the gears are unloaded. The side gears are loaded during vehicle turns. A worn pinion mate shaft can also cause a snapping or a knocking noise.

BEARING NOISE

The axle shaft, differential and pinion bearings can all produce noise when worn or damaged. Bearing noise can be either a whining, or a growling sound.

Pinion bearings have a constant-pitch noise. This noise changes only with vehicle speed. Pinion bearing noise will be higher pitched because it rotates at a faster rate. Drive the vehicle and load the differential. If bearing noise occurs, the rear pinion bearing is the source of the noise. If the bearing noise is heard during a coast, the front pinion bearing is the source.

Differential bearings usually produce a low pitch noise. Differential bearing noise is similar to pinion bearing noise. The pitch of differential bearing noise is also constant and varies only with vehicle speed.

Axle shaft bearings produce noise and vibration when worn or damaged. The noise generally changes when the bearings are loaded. Road test the vehicle. Turn the vehicle sharply to the left and to the right. This will load the bearings and change the noise level. Where axle bearing damage is slight, the noise is usually not noticeable at speeds above 30 mph.

LOW SPEED KNOCK

Low speed knock is generally caused by a worn U-joint/CV or by worn side-gear thrust washers. A worn pinion shaft bore will also cause low speed knock.

VIBRATION

Vibration at the rear of the vehicle is usually caused by:

Damaged drive shaft.
Missing drive shaft balance weight(s).
Worn or out of balance wheels.
Loose wheel lug nuts.
Worn U-joint or CV.
Loose/broken springs.
Damaged axle shaft bearing(s).
Loose pinion gear nut.
Excessive pinion flange run out.
Bent axle shaft(s).

Check for loose or damaged front end components or engine/transmission mounts. These components can contribute to what appears to be a rear end vibration. Do not overlook engine accessories, brackets and drive belts.

All driveline components should be examined before starting any repair.

DRIVELINE SNAP

A snap or clunk noise when the vehicle is shifted into gear (or the clutch engaged) can be caused by:

High engine idle speed.
Transmission shift operation.
Loose engine/transmission/transfer case mounts.
Worn U-joints or CV.
Loose spring mounts.
Loose pinion gear nut and flange.
Excessive ring gear backlash.
Excessive side gear to case clearance.

The source of a snap or a clunk noise can be determined with the assistance of a helper. Raise the vehicle on a hoist with the wheels free to rotate. Instruct the helper to shift the transmission into gear. Listen for the noise, a mechanics stethoscope is helpful in isolating the source of a noise.

ADJUSTMENTS

Special Tools: Click to display a list of tools used in this procedure

Compensation for pinion depth variance is achieved with a select shim (1). The shims are placed between the rear pinion bearing and the pinion gear head. A collapsible spacer on the pinion shaft is used to maintained pinion bearing preload. Differential bearing preload and ring gear (3) backlash is achieved, with select shims (2,4) located behind the bearing cups.

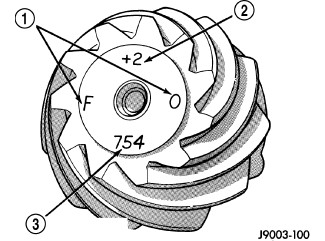

Ring and pinion gears are supplied as matched sets. The identifying numbers (3) for the ring and pinion gear are etched/marked onto each gear. A plus (+) number, minus (-) number or zero (0) is etched/marked on the pinion gear (2). This number is the amount (in thousandths of an inch) the depth varies from the standard depth setting of a pinion etched/marked with a (0).

If a new gear set is being installed, note the depth variance etched into both the original and replacement pinion. Add or subtract this number from the thickness of the original depth shim to compensate for the difference in the depth variances. Refer to the Pinion Gear Depth Variance chart.

Note where Old and New Pinion Marking columns intersect. Intersecting figure represents plus or minus the amount needed.

Note the etched number on the face of the pinion gear head (-1, -2, 0, +1, +2, etc.). The numbers represent thousands of an inch deviation from the standard. If the number is negative, add that value to the required thickness of the depth shims. If the number is positive, subtract that value from the thickness of the depth shim. If the number is 0 no change is necessary.

PINION GEAR DEPTH VARIANCE

Original Pinion Gear Depth Variance	Replacement Pinion Gear Depth Variance
Original Pinion Gear Depth Variance	−4	−3	−2	−1	0	+1	+2	+3	+4
+4	+0.008	+0.007	+0.006	+0.005	+0.004	+0.003	+0.002	+0.001	0
+3	+0.007	+0.006	+0.005	+0.004	+0.003	+0.002	+0.001	0	−0.001
+2	+0.006	+0.005	+0.004	+0.003	+0.002	+0.001	0	−0.001	−0.002
+1	+0.005	+0.004	+0.003	+0.002	+0.001	0	−0.001	−0.002	−0.003
0	+0.004	+0.003	+0.002	+0.001	0	−0.001	−0.002	−0.003	−0.004
−1	+0.003	+0.002	+0.001	0	−0.001	−0.002	−0.003	−0.004	−0.005
−2	+0.002	+0.001	0	−0.001	−0.002	−0.003	−0.004	−0.005	−0.006
−3	+0.001	0	−0.001	−0.002	−0.003	−0.004	−0.005	−0.006	−0.007
−4	0	−0.001	−0.002	−0.003	−0.004	−0.005	−0.006	−0.007	−0.008

PINION DEPTH MEASUREMENT AND ADJUSTMENT

Measurements are taken with pinion bearing cups and pinion bearings installed in the housing. Take measurements with Dial Indicator C-3339A (1).

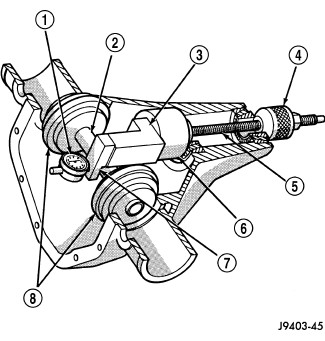

Assemble Pinion Height Block 6739 (2), Pinion Block 9946 (1) and rear pinion bearing onto Screw 6741 .

Insert assembled height gauge components into the housing through pinion bearing cups.

Install front pinion bearing and Cone-nut 6740 . Tighten nut until torque to rotate the screw is 2.25 N·m (20 in. lbs.).

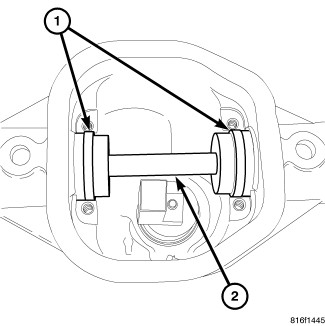

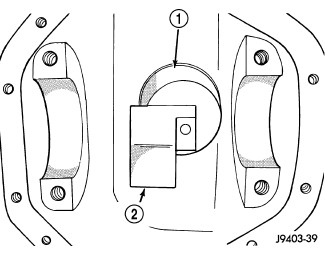

Place Arbor Disc 6732 (1) on Arbor D-115-3 (2) and position in axle housing differential bearing cradles.

NOTE:
Arbor Discs 6732 has different step diameters to fit other axles. Choose proper step for axle being serviced.

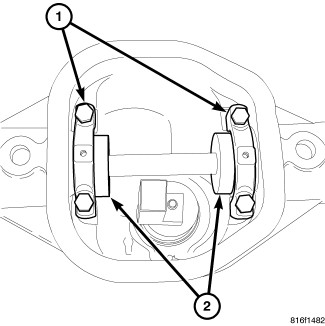

Install differential bearing caps (1) on arbor discs (2) and tighten cap bolts to 61 N·m (45 ft. lbs.).

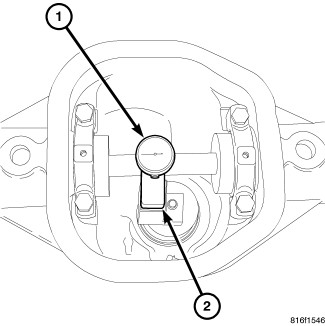

Install Dial Indicator C-3339A (1) into Scooter Block D-115-2A (2) and secure set screw.

Position Scooter Block/Dial Indicator flush on the pinion height block and zero the dial indicator.

Slowly slide the scooter block across the pinion height block over to the arbor. Move the scooter block till the dial indicator probe crests the arbor and record the highest reading.

Select a shim equal to the dial indicator reading plus or minus the pinion depth variance number etched in the face of the pinion. Example: If depth variance is -2 add 0.002 in. to the dial indicator reading. If depth variance is +2 subtract 0.002 in. from the dial indicator reading. The total is the shim thickness needed for the pinion depth variance.

DIFFERENTIAL BEARING PRELOAD AND GEAR BACKLASH

Before performing differential bearing preload and ring gear backlash measurements, pinion gear depth must be established and the pinion gear ready for installation. Establishing pinion gear depth is essential to ring gear backlash and tooth contact patterns.

Differential side bearing preload and gear backlash is accomplish with selective shims (2,4) positioned behind the differential side bearing cups. Shims are determined using Dummy Bearings D-348 in place of the differential side bearings and a Dial Indicator C-3339A .

SHIM FORMULA: Differential End Play + Preload Specification = Total Differential Shim. Total Differential Shim - Ring Gear Side Shim - Backlash Specification = Pinon Gear Side Shim.

PRELOAD SHIM SELECTION

Remove differential side bearings from differential case.

Remove factory installed shims from differential case.

Install ring gear on differential case and tighten bolts to specification.

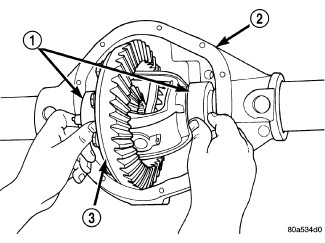

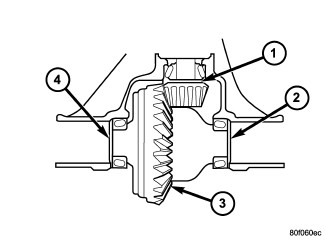

Install dummy side bearings D-348 (1) on differential case (3) and install differential case (3) in the housing (2).

Install differential (3) bearing caps (1) in original location and snug bearing cap bolts.

Seat differential dummy bearings to pinion gear side of the housing (2), with a dead-blow hammer (1).

Seat differential dummy bearings to ring gear side of the housing (1), with a dead-blow hammer (2).

Thread Pin C-3288-B (2) into cover bolt hole.

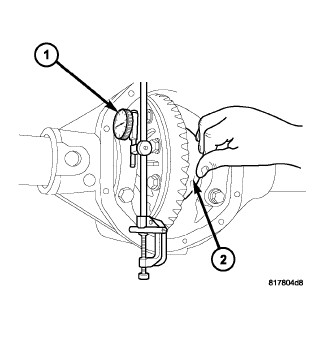

Attach Dial Indicator C-3339A (1) to the pin and position indicator plunger on a flat surface between the ring gear bolts.

Push and hold differential case (1) to pinion gear side of the housing and zero dial indicator (2).

Push and hold differential case (2) to ring gear side of the housing. Record the dial indicator (1) reading. Add preload specification 0.2 mm (0.008 in.) to differential dial indicator reading. This is the total differential shim thickness needed to preload the differential bearings. EXAMPLE: Differential Dial Indication Reading + Preload Specification 0.2 mm (0.008 in.) = Total Differential Shim

Rotate dial indicator out of the way on the pilot stud.

Remove differential case and dummy bearings from the housing.

Install pinion gear in the housing and establish pinion (1) torque to rotating (PTTR).

Install differential case (1) with dummy bearings D-348 in the housing, install bearing caps and snug bolts.

Seat ring gear side dummy bearing.

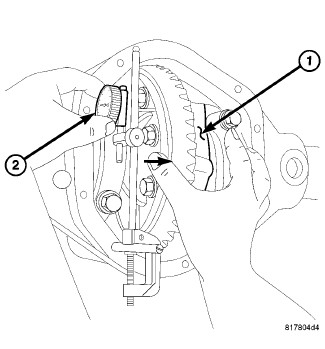

Position dial indicator (2) plunger on a flat surface between the ring gear bolts.

Push and hold differential case (1) against pinion gear and zero dial indicator (2).

Push and hold differential case (2) to ring gear side of the housing and record dial indicator (1) ring gear side reading.

Subtract backlash specification 0.05 mm (0.002 in.) from ring gear side reading for ring gear backlash. The remainder is the shim needed on the ring gear side of the differential. EXAMPLE: Ring Gear Side Reading - Backlash Specification 0.05 mm (0.002 in.) = Ring Gear Side Shim

Subtract ring gear side shim from differential total preload shim. The remainder is the shim needed on the pinion gear side of the differential. EXAMPLE: Total Differential Shim - Ring Gear Side Shim = Pinion Gear Side Shim

Rotate dial indicator out of the way on pilot stud.

Remove differential case with dummy bearings from the housing.

Install side bearings on differential case.

Install spreader W-129-B (1) and hold down adapters (2) from Adapter Set 6987B onto housing. Spread the housing 0.50 mm (0.020 in.).

CAUTION:
Never spread housing over 0.50 mm (0.020 in.). Failure to follow these instruction could result in distorting the housing.

Install differential case (2) with bearings cups (3) and shims into the housing (1).

Remove spreader from the housing.

Install bearing caps (1) and tighten bolts to 61 N·m (45 ft. lbs.).

Rotate differential case several times to seat the side bearings.

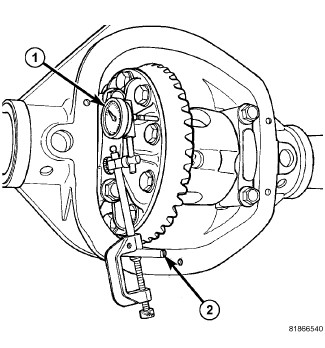

Position dial indicator plunger (1) against a ring gear tooth.

Push and hold ring gear upward while holding the pinion gear.

Zero dial indicator face to pointer.

Push and hold ring gear downward while holding the pinion gear. Dial indicator reading should be between 0.12 mm - 0.20 mm (0.005 in - 0.008 in). If backlash is not within specifications transfer the necessary amount of shim thickness from one side of the housing to the other.

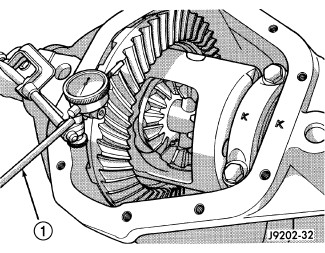

Verify differential case and ring gear runout by measuring ring to pinion gear backlash at eight locations around the ring gear. Readings should not vary more than 0.05 mm (0.002 in). If readings vary more than specified, the ring gear or the differential case is defective.

After the proper backlash is achieved, perform Gear Contact Pattern procedure.

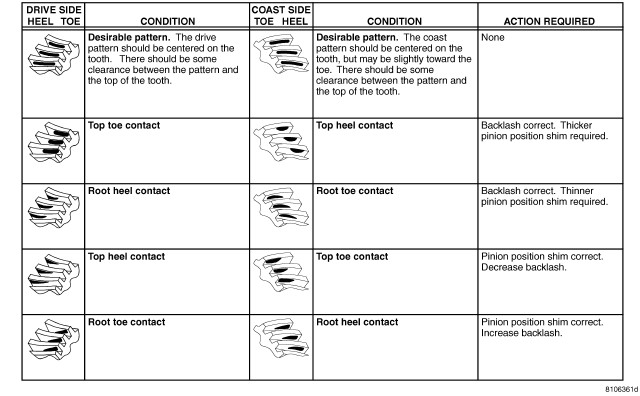

GEAR CONTACT PATTERN

The ring gear and pinion teeth contact patterns will show if the pinion gear depth and ring gear backlash has been adjusted correctly. Backlash can be adjusted within specifications to achieve desired tooth contact patterns.

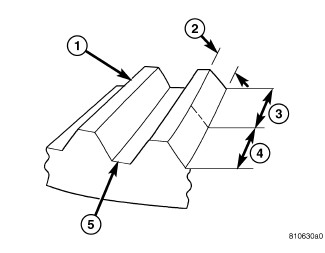

The TOP LAND (1) of the gear tooth is the top surface of the tooth. The PROFILE (2) of the gear tooth is the depth of the tooth. The TOE (3) of the gear is the portion of the tooth surface at the end towards the center. The HEEL (4) of the gear is the portion of the tooth at the outer-end. The ROOT (5) of the gear tooth is the lowest portion of the tooth.

Apply a thin coat of hydrated ferric oxide or equivalent to the drive and coast side of the ring gear teeth.

Wrap, twist and hold a shop towel around the pinion flange to increase the turning resistance of the pinion. This will provide a more distinct contact pattern.

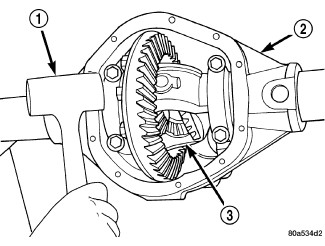

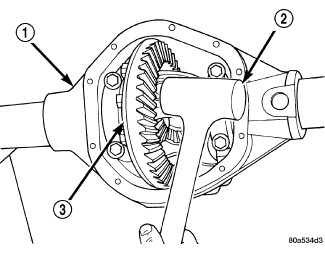

With a boxed end wrench on the ring gear bolt, rotate the differential case one complete revolution in both directions while loading the pinion gear with shop towel.

The ring gear teeth with the greatest degree of contact with the pinion gear teeth will squeeze the compound to the areas with the least amount of contact. Note and compare patterns on the ring gear teeth to Gear Tooth Contact Patterns chart and adjust pinion depth and gear backlash as necessary.

NOTE:
If the PROFILE across the tooth is the same, it is a Three Axis cut gear. If the PROFILE across the tooth is tapered it is a Two Axis cut gear.

TWO or THREE AXIS CUT GEAR

DIFFERENTIAL BEARING PRELOAD CHECK

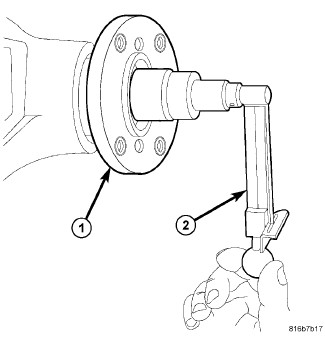

With an inch pound torque wrench (2) measure Total Torque To Rotate (TTTR). This is the final check on the differential assembly before installing the axle shafts. This will verify the correct differential bearing preload.

Total Torque To Rotate is: Pinion Torque To Rotate (PTTR) plus 0.79 - 1.24 N·m (7 - 11 in. lbs.).

NOTE:
If TTTR is high, decrease the shim thickness equally on both sides of the differential and check TTTR again. If TTTR is low, increase the shims thickness equally on both sides of the differential and check TTTR again.

SPECIFICATIONS

AXLE

DESCRIPTION	SPECIFICATION
Axle Ratio	3.21, 3.73, 4.10
Ring Gear Diameter	186 mm (7.33 in.)
Ring Gear Runout	0.12 mm (0.005 in.)
Ring Gear Backlash	0.12 - 0.20 mm (0.005 - 0.008 in.)
Pinion Torque To Rotate - Original Bearings	1.2 - 2.2 N·m (10 - 20 in. lbs.)
Pinion Torque To Rotate - New Bearings	2 - 3.4 N·m (15 - 30 in. lbs.)
Differential Total Torque To Rotate: Pinion Torque To Rotate Plus	0.79 - 1.24 N·m (7 - 11 in. lbs.)

TORQUE

DESCRIPTION	N·m	Ft. Lbs.	In. Lbs.
Fill Hole Plug	34	25	-
Differential Cover Bolts	41	30	-
Bearing Cap Bolts	61	45	-
Ring Gear Bolts	108	80	-
Pinion Nut	217 - 542	160 - 400	-
Axle Nut	136	100	-
Hub Bearing Bolts	102	75	-

REMOVAL

NOTE:
Procedure is the same for a 4x2 tube axle except for propeller shaft and axle vent removal.

With transmission in neutral, position vehicle on hoist.

Position and secure lift to axle.

Mark an installation reference line across the front propeller shaft flange (1) and the axle flange (2).

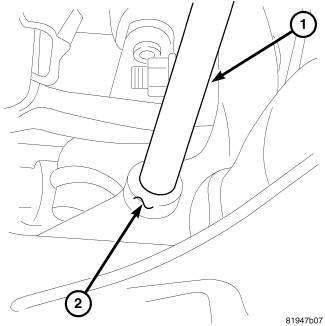

Remove vent hose (1) from axle housing (2).

Remove brake calipers and rotors.

Remove wheel speed sensors (1) from hub bearings.

Remove brake lines and sensor wiring from axle.

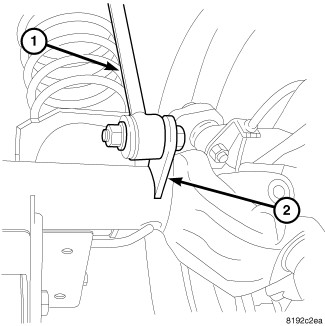

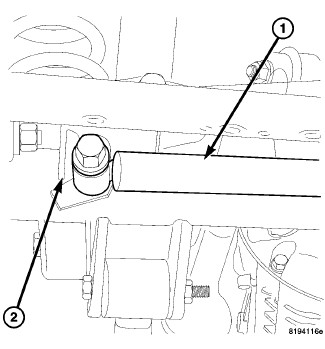

Remove stabilizer bar links (1) from axle brackets (2).

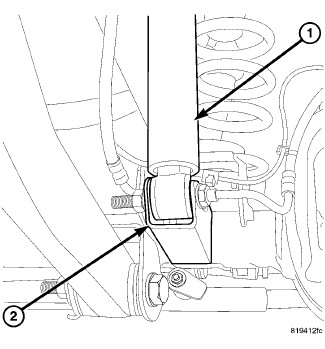

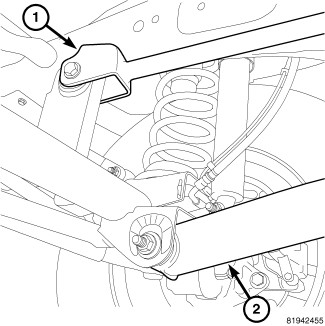

Remove shock absorbers (1) from axle brackets (2).

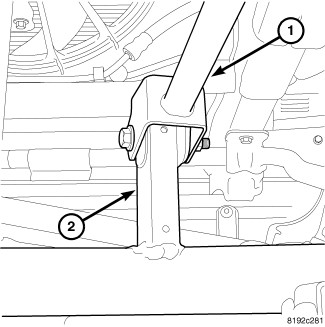

Remove track bar bolt (1) and track bar (2) from axle bracket.

Remove steering damper (1) from axle bracket (2).

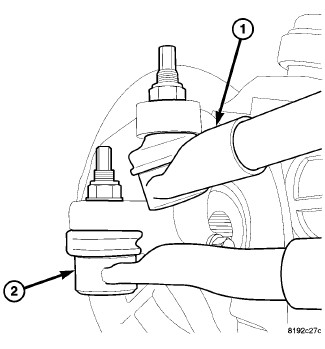

Remove drag link (1) and tie rod ends (2) from steering knuckles.

Remove upper control arms (1) from axle brackets (2).

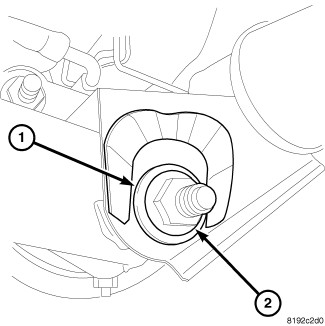

Mark lower control arm cams (1) for installation reference and loosen nuts (2).

Lower axle enough to remove coil springs from axle.

Remove lower control arm bolts remove axle from vehicle.

INSTALLATION

CAUTION:

The weight of the vehicle must be supported by the springs before suspension arms and track bar fasteners are tightened. Failure to follow these instruction will result in damaging the bushings.

NOTE:
Procedure is the same for a 4x2 tube axle except for propeller shaft and axle vent installation.

Position axle under vehicle.

Install lower control arms in axle brackets.

Install lower control arm bolts, cams (1) and loosely install nuts (2).

Install coil springs on axle and raise axle into position.

Install upper control arms (1) on axle brackets (2) and loosely install bolts and nuts.

Install track bar (2) in axle bracket and loosely install bolt (1).

Install steering damper (1) on axle bracket (2) and tighten to specification.

Install drag link (1) and (2) tie rod ends on steering knuckles and tighten to specification.

Install shock absorbers (1) on axle brackets (2) and tighten to specification.

Install stabilizer bar links (1) on axle brackets (2) and tighten to specification.

Install wheel speed sensors harness on axle and install sensors (1) in hub bearings.

Install brake rotors, calipers and brakes lines.

Install vent hose (1) on axle housing (2).

NOTE:
Clean all propeller shaft bolts and apply Mopar® Lock AND Seal Adhesive or equivalent to the threads before installation.

Install propeller shaft with axle flange (2) and propeller shaft (1) marks aligned. Tighten bolts to specification.

Remove lift from the axle.

Install wheel and lower vehicle.

Align lower control arm (2) cams to reference marks and tighten control arm nuts to specification.

Tighten upper (1) control arm nuts to specification.

Tighten track bar (2) bolt (1) at axle bracket to torque specification.

SPECIAL TOOLS

	6732 - Set, Arbor Disc Originally Shipped In Kit Number(s) 6730.
	6739 - Block, Height Originally Shipped In Kit Number(s) 6730, 9516A-CAN, 9540, 9541.
	6740 - Cone Originally Shipped In Kit Number(s) 6730, 6731, 9516A-CAN, 9540, 9541.
	6741 - Screw Originally Shipped In Kit Number(s) 6730, 6731, 9516A-CAN, 9540, 9541.
	6764 - Installer, Axle Seal
	6987B - Adapter Kit, Axle Spreader Originally Shipped In Kit Number(s) 6980, 6994, 6995, 8653.
	8109 - Cup Originally Shipped In Kit Number(s) 8163, 8163CC, 8164, 8164CC, 8165, 8165CC.
	8110 - Installer, Seal Originally Shipped In Kit Number(s) 8163, 8163CC, 8165, 8165CC.
	8112 - Screw Originally Shipped In Kit Number(s) 8163, 8163CC, 8164, 8164CC, 8165, 8165CC.
	8681 - Installer, Seal Originally Shipped In Kit Number(s) 8696, 8696CC, 8710, 8710CC, 9988, 9989.
	9946 - Gauge, Pinion Height Originally Shipped In Kit Number(s) 9945-SUP.
	C-293-39 - Block Set, Puller Originally Shipped In Kit Number(s) 8418, C-293-M, DD-914-CLT-L.
	C-293-48 - Block Set, Puller Originally Shipped In Kit Number(s) 8418, 8837, C-293-M, DD-914-CLT-L.
	C-293-PA - Puller, Press Originally Shipped In Kit Number(s) 8418, 8837, C-293-M.
	C-3281 - Holder, Flange Originally Shipped In Kit Number(s) 9202, 9202A-CAN, 9202CC, 9299, 9299CC, 9299CC, 9300A-CAN.
	C-3288-B - Set, Alignment Pins Originally Shipped In Kit Number(s) 9975.
	C-3339A - Set, Dial Indicator Originally Shipped In Kit Number(s) 9202.
	C-3716-A - Installer, Bearing Originally Shipped In Kit Number(s) 9975.
	C-4040 - Installer, Bearing Originally Shipped In Kit Number(s) 9398.
	C-4171 - Driver Handle, Universal Originally Shipped In Kit Number(s) 9202, 9202A-CAN, 9202CC, 9299, 9299CC, 9299CC, 9300A-CAN.
	C-4308 - Installer, Bearing Cup Originally Shipped In Kit Number(s) 9695.
	C-452 - Puller, Companion Flange
	D-115-2A - Block, Scooter Originally Shipped In Kit Number(s) 9329-SUP, 9515-SUP, 9516-SUP, 9517-SUP, 9518, 9519, 9540-SUP, 9541-SUP, 9694, 9926.
	D-115-3 - Arbor Originally Shipped In Kit Number(s) 8667, 9516A-CAN.
	D-146 - Installer, Bearing Cup Originally Shipped In Kit Number(s) 8667.
	D-149 - Remover, Bearing Cup Originally Shipped In Kit Number(s) 8207, 8418, C-4306.
	D-348 - Set, Dummy Bearing-Dana 30/35 Originally Shipped In Kit Number(s) 6776, 6777, 9988, 9989.
	SP-3289 - Extension, Puller Originally Shipped In Kit Number(s) 9599.
	W-129-B - Spreader, Differential Originally Shipped In Kit Number(s) 9975.
