2012 Jeep Wrangler JK Factory Service Manual 06 - Clutch

BEARING, Clutch Release

REMOVAL

REMOVAL

  1. Remove transmission.

    2.

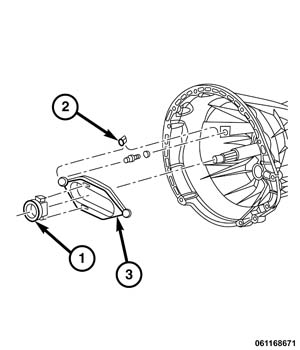

  2. Disconnect release bearing (1) from release fork (3) and remove the bearing.

    3.
  3. Inspect bearing slide surface of transmission front bearing retainer. Replace retainer if slide surface is scored, worn, or cracked.

    4.
  4. Inspect release fork and fork pivot. Be sure pivot is secure and in good condition. Be sure fork is not distorted or worn. Replace release fork retainer spring if bent or damaged.

    5.

INSTALLATION

INSTALLATION

  1. Lubricate crankshaft pilot bearing with Mopar™ high temperature bearing grease or equivalent. Apply grease to end of long shank, small diameter flat blade screwdriver. Then insert tool through clutch disc hub to reach bearing.

    2.
  2. Lubricate input shaft splines, bearing retainer slide surface, fork pivot and release fork pivot surface.

    3.
  3. Install new release bearing (1) and secured to release fork (3).

    4.
  4. Install transmission.

    5.
