2012 Jeep Wrangler JK Factory Service Manual 17 - Rear Suspension

TRACK BAR, Rear

REMOVAL

REMOVAL

  1. Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.

    2.

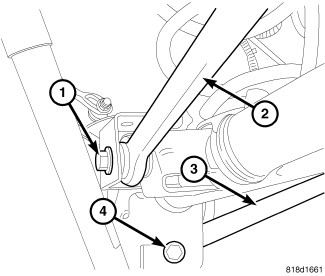

  2. Remove the track bar bolt at the axle bracket (1).

    3.

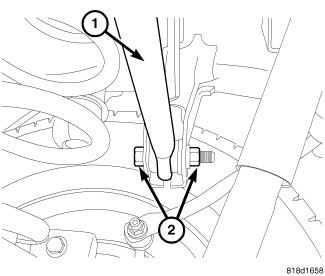

  3. Remove the track bar bolt and nut (2) from the frame bracket.

    4.
  4. Remove the track bar (1) from the vehicle.

    5.

INSTALLATION

INSTALLATION

  1. Install the track bar (1) to the vehicle.

    NOTE:

    Frame bolt must be installed from the front to the rear of the vehicle.


    2.
  2. Install the track bar bolt and flagnut (2) in the frame bracket.

    3.
  3. Install the track bar (2) into the axle bracket.

    4.
  4. Install the track bar bolt and flagnut (1) in the axle bracket.

    5.
  5. Remove the supports and lower the vehicle.

    6.
  6. Tighten the frame and axle mounting bolt/nut to 169 N·m (125 ft. lbs.) with full vehicle weight.

    7.
