REMOVAL

REMOVAL

  1. Disconnect battery.

    2.

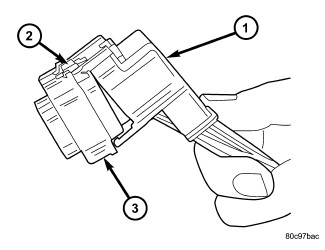

  2. Release Connector Lock (2).

    3.
  3. Disconnect the connector (3) being repaired from its mating half/component.

    4.
  4. Remove the dress cover (if applicable) (1).

    5.

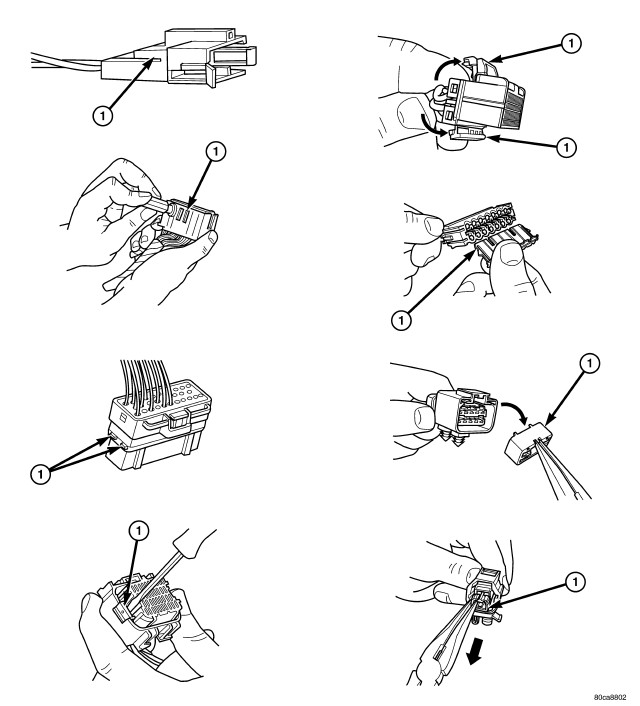

  5. Release the Secondary Terminal Lock, if required (1).

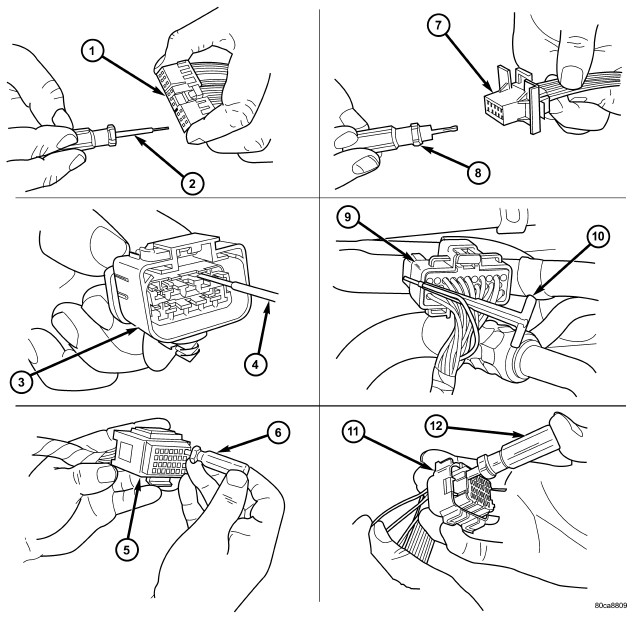

    1 - TYPICAL CONNECTOR

    2 - PICK FROM TERMINAL REMOVER KIT 6680 OR 8197A

    3 - APEX CONNECTOR

    4 - PICK FROM TERMINAL REMOVER KIT 6680 OR 8197A

    5 - AUGAT CONNECTOR

    6 - ELECTRICAL REMOVER 6932

    7 - MOLEX CONNECTOR

    8 - PICK FROM TERMINAL REMOVER KIT 8197A

    9 - THOMAS AND BETTS CONNECTOR

    10 - TERMINAL REMOVER 6934

    11 - TYCO CONNECTOR

    12 - ELECTRICAL TERMINAL REMOVER 8638



    6.
  6. Position the connector locking finger away from the terminal using the proper special tool. Pull on the wire to remove the terminal from the connector .
