MODULE, Glow Plug

REMOVAL

REMOVAL

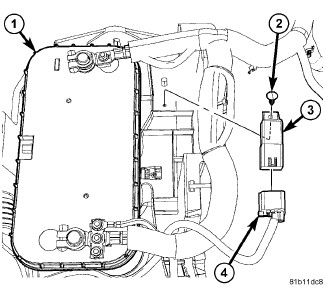

RIGHT HAND DRIVE

NOTE:

The glow plug module (3) is located near the front of the battery (1).

  1. Disconnect the negative battery cable.

    2.
  2. Carefully remove mounting pin (2).

    3.
  3. Disconnect the wire harness connector (4) from the glow plug module.

    4.

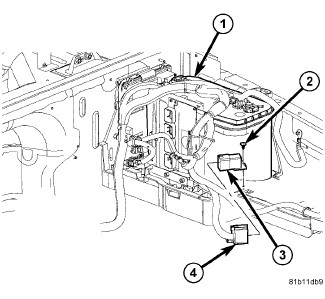

LEFT HAND DRIVE

NOTE:

The glow plug module (3) is located near the front of the battery (1).

  1. Disconnect the negative battery cable.

    2.
  2. Carefully remove mounting pin (2).

    3.
  3. Disconnect the wire harness connector (4) from the glow plug module.

    4.

INSTALLATION

INSTALLATION


RIGHT HAND DRIVE

NOTE:

The glow plug module (3) is located near the front of the battery (1).

  1. Connect the wire harness connector (4) to the glow plug module.

    2.
  2. Position the glow plug module (3) and install the mounting pin (2).

    3.
  3. Connect the negative battery cable.

    4.

LEFT HAND DRIVE

NOTE:

The glow plug module (3) is located near the front of the battery (1).

  1. Connect the wire harness connector (4) to the glow plug module.

    2.
  2. Position the glow plug module (3) and install the mounting pin (2).

    3.
  3. Connect the negative battery cable.

    4.
