CAPACITOR, Ignition

REMOVAL

REMOVAL

  1. Disconnect and isolate the negative battery cable.

    2.

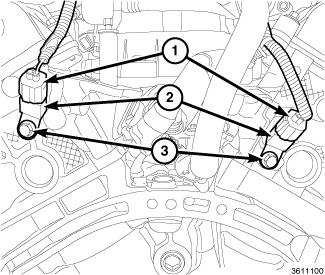

  2. Remove the electrical connector (1).

    3.
  3. Remove the mounting bolt (3) and the ignition capacitor (2).

    4.

INSTALLATION

INSTALLATION

  1. Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to 10 N·m (89 in. lbs.).

    2.
  2. Connect the electrical connector (1).

    3.
  3. Connect the negative battery cable and tighten nut to 5 N·m (45 in. lbs.).
