2012 Jeep Wrangler JK Factory Service Manual 08 - Electrical

MODULE, Hands Free (HFM)

REMOVAL

REMOVAL

  1. Disconnect the negative battery cable.

    2.

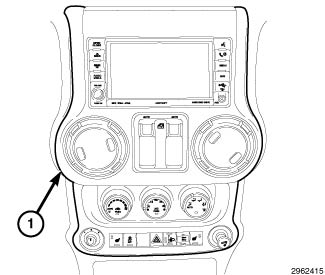

  2. Remove the instrument panel center bezel (1) (Refer to 23 - Body/Instrument Panel/BEZEL, Instrument Panel - Removal) .

    3.

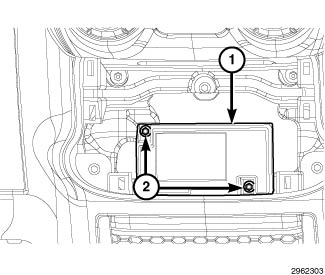

  3. Remove the Hands Free Module (HFM) (1) mounting retainers (1).

    4.
  4. Disconnect the electrical connector.

    5.
  5. Remove the HFM module (1) from the vehicle.

    6.

INSTALLATION

INSTALLATION

  1. Connect the electrical connector and install the Hands Free Module (HFM) (1).

    2.
  2. Install the HFM mounting retainers (2).

    3.
  3. Install the instrument panel center bezel (1) (Refer to 23 - Body/Instrument Panel/BEZEL, Instrument Panel - Installation) .

    4.
  4. Connect the negative battery cable.

    5.
