AIR CLEANER

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

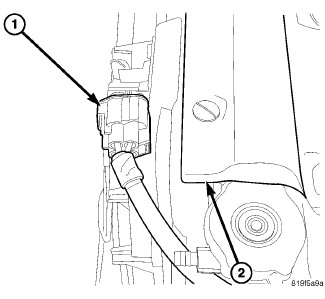

1. Disconnect the cooling fan harness connector (1).

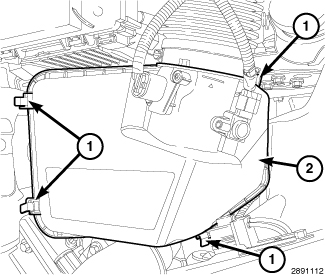

2. Release the four lock tabs (1) and remove the housing cover (2).




3. Remove the air filter element.


4. If necessary, clean the inside of the air cleaner housing.




INSTALLATION

INSTALLATION

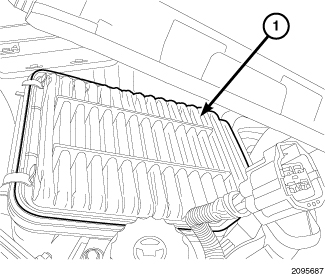

1. Install new air filter element (1).




2. Install housing cover (2) and the four snap lock tabs (1) in place.




3. Connect the cooling fan electrical connector (1).
