2012 Jeep Wrangler JK Factory Service Manual 21 - Transmission and Transfer Case

KNOB, Gearshift

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

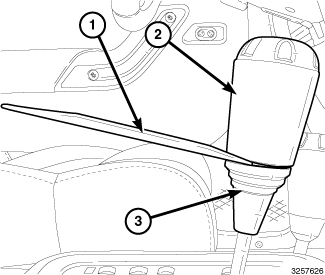

  1. Using trim stick C-4755 (1) or equivalent, separate the retaining ring (3) from the knob (2) and slide down the shifter shaft.

    2.

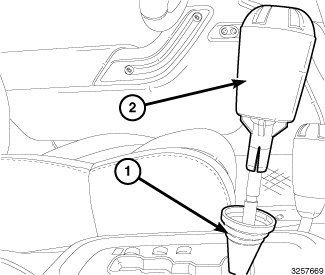

  2. Pull the knob (2) off of the shift shaft.

    3.

INSTALLATION

INSTALLATION

  1. Install the shift knob (2) onto the shift lever and firmly push the shift knob down.

    NOTE:

    There is a small notch in the retaining ring. Align notch with the seam in the knob.


    2.
  2. Pull the retaining ring (1) up and click into place.

    3.
