BUMPER, Rear

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

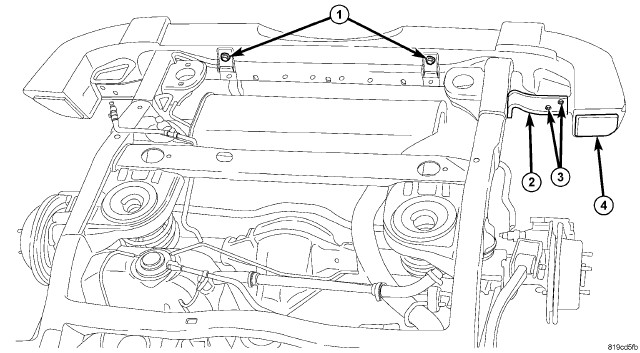

1. Remove the bumper bracket bolts (3).


2. Remove the bumper support bolts (1) and remove the bumper (4).




INSTALLATION

INSTALLATION

1. Install the bumper (4) and install the bolts (1) and (3).


2. Tighten the bolts (1) and (3) to 25 N·m (18.5 ft. lbs.).
