2012 Jeep Wrangler JK Factory Service Manual 19 - Steering

CYLINDER, Ignition Lock

REMOVAL

REMOVAL

The ignition key (1) must be in the key cylinder (2) for cylinder removal. The key cylinder must be removed first before removing ignition switch.

  1. If equipped with an automatic transmission, place shifter in PARK position.

    2.
  2. Remove the shroud covers.

    3.
  3. Remove the remote keyless entry (S.K.R.E.E.M) module.

    4.
  4. Remove the halo ring around the cylinder.

    5.
  5. Rotate key to RUN position.

    6.

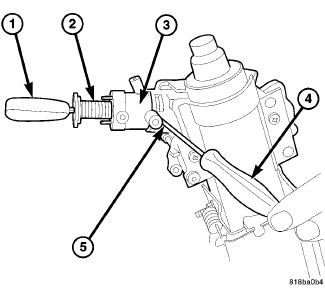

  6. A release pin is located on the bottom of the key cylinder (5) with the access hole on the top of the lock cylinder housing (3).

    7.
  7. Position a small screwdriver or pin punch (4) into pin access hole (5).

    8.
  8. Push the pin punch (5) up while pulling key cylinder (2) from lock cylinder housing (3).

    9.

INSTALLATION

INSTALLATION

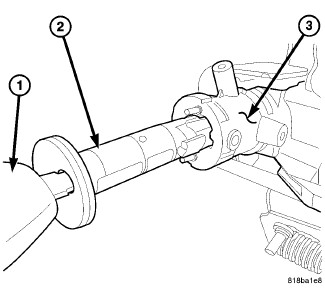

The ignition key (1) must be in the key cylinder (2) for cylinder installation.

  1. Install the key cylinder (2) into the housing (3) using care to align the end of the key cylinder with the ignition switch.

    2.
  2. Push the key cylinder (2) in until it clicks.

    3.
  3. Rotate the key to the insert position.

    4.
  4. Install the halo ring around the key cylinder housing.

    5.
  5. Install the (S.K.R.E.E.M) module.

    6.
  6. Install the shroud covers.
