CAMSHAFT, Engine

DESCRIPTION

DESCRIPTION

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

VM.9991 - Alignment Tool, Camshaft Sprocket

The camshafts are made of cast iron with eight machined lobes and four bearing journals.

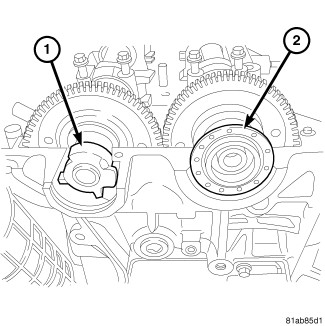

1. The exhaust camshaft (1) incorporates the CMP sensor reluctor wheel. The intake camshaft uses a camshaft seal (2).





   NOTE:

   Starting in model year 2013, the exhaust camshaft reluctor is now bolted on requiring a change in the Camshaft Sprocket Alignment Tool VM.9991. The new Camshaft Sprocket Alignment Tool number is VM.9991–1. This tool can be used on older models.

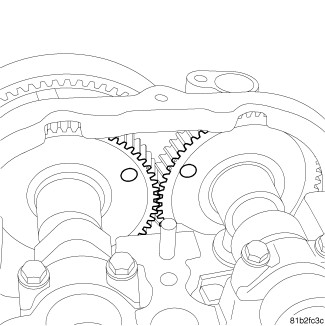

2. The dots on the back of the camshaft gears are for initial timing only. These dots are for timing the camshafts to each other. To correctly set engine timing, the camshafts must be set to 90° ATDC. The Camshaft Locking Tool VM.9991 is used to correctly set the camshafts to their proper location.




REMOVAL

REMOVAL

1. Disconnect the negative battery cable.

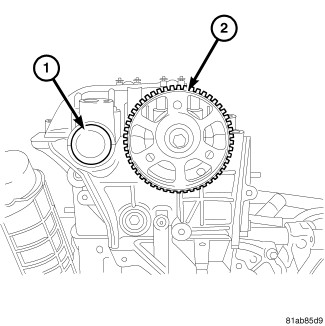

2. Remove the intake camshaft sprocket (2) (Refer to 09 - Engine/Valve Timing/SPROCKET(S) , Timing Belt and Chain - Removal).

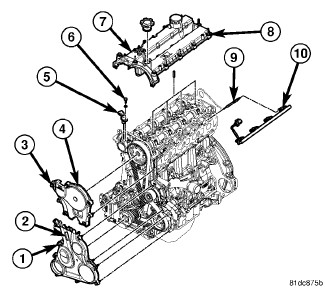

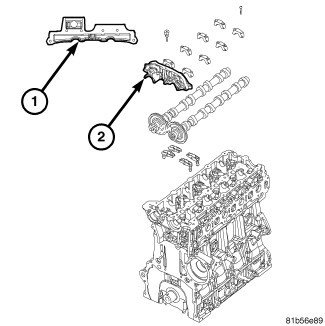

3. Remove the cylinder head cover (7) (Refer to 09 - Engine/Cylinder Head/COVER(S) , Cylinder Head - Removal).




4. Remove the front cam bearing journal (2).




5. Remove the intake camshaft oil seal (2).





   NOTE:

   Observe the position marks on the cylinder head and camshaft cap as a reference to its original location. The illustration is an example of the camshaft markings.





   NOTE:

   Intake and exhaust manifolds removed for clarity.

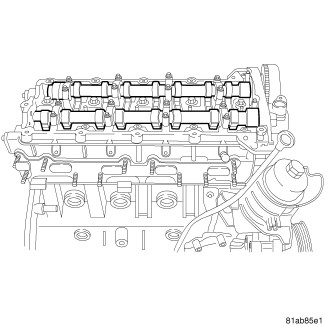

6. Using a circular pattern, remove bolts and the camshaft bearing caps.


7. Remove the camshafts.




INSTALLATION

INSTALLATION

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	VM.9991 - Alignment Tool, Camshaft Sprocket
	9937-1 - Installer, Seal Originally Shipped In Kit Number(s) 9937.
	9937-2 - Guide, Seal Originally Shipped In Kit Number(s) 9937.
	C-3339A - Set, Dial Indicator Originally Shipped In Kit Number(s) 9202.

1. Lubricate the camshaft journals with Mopar® Engine Oil Supplement, or equivalent.



   NOTE:

   The dots on the back of the camshaft gears are for initial timing only. These dots are for timing the camshafts to each other. To correctly set engine timing, the camshafts must be set to 90° ATDC. The camshaft locking tool is used to correctly set the camshafts to their proper location.

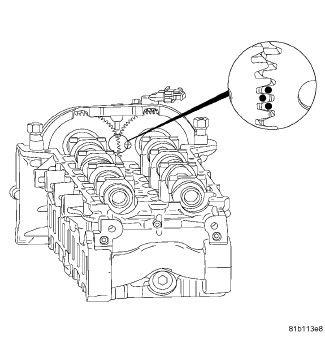

2. Make sure that the three small orientation dots marks on the back side of the camshaft gears are horizontal and facing each other.


3. Carefully install camshafts onto the camshaft journals.

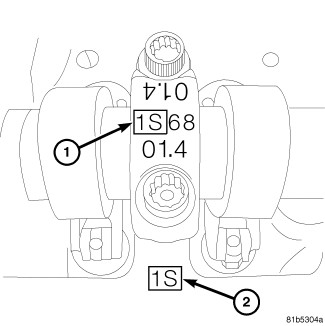

4. The cylinder head and camshaft caps have markings to identify each cap to its correct location. In the illustration, 1S (1) is marked on the exhaust side camshaft cap and 1S (2) is the mark on the exhaust side of the cylinder head. It is critical that all of the camshaft caps are returned to their correct locations.

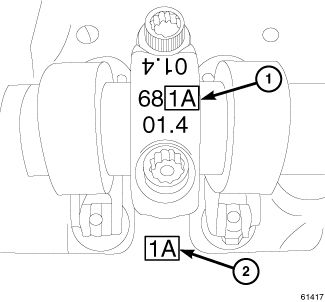

5. The cylinder head and camshaft caps have markings to identify each cap to its correct location. In the illustration, 1A (1) is marked on the intake side camshaft cap and 1A (2) is the mark on the intake side of the cylinder head. It is critical that all of the camshaft caps are returned to their correct locations.





   NOTE:

   Whenever the camshaft caps are removed, always replace the bolts.



6. The camshaft bolts have 2 different bolt sizes.
   • Bolts A are M6 35 mm.
   • Bolts B are M6 45 mm.

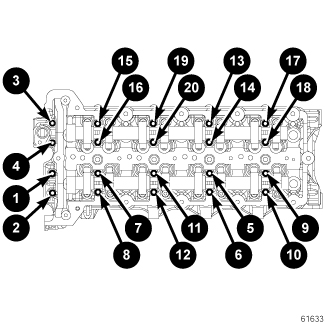

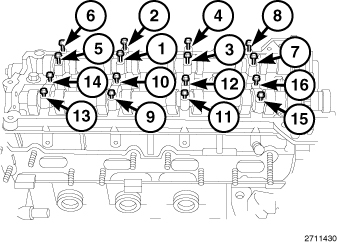

7. Using new bolts and the tightening sequence shown, install the camshaft bolts and tighten bolts in one turn increments until finger tight.





   NOTE:

   Be careful not to get ant Loctite® 510 onto the camshaft journal.

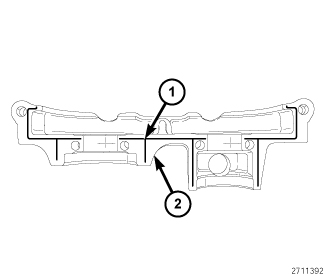

8. Apply a thin bead of Loctite® 510 to the front camshaft bearing journal (2) in the location illustrated (1).


9. Install the front camshaft bearing journal and tighten the new bolts finger tight.




10. Using the sequence shown, tighten the camshaft cap bolts to 11 N·m (97 in. lbs.).





    NOTE:

    Starting in model year 2013, the exhaust camshaft reluctor is now bolted on requiring a change in the Camshaft Sprocket Alignment Tool VM.9991. The new Camshaft Sprocket Alignment Tool number is VM.9991–1. This tool can be used on older models.



11. Rotate the camshafts so that the Alignment Tool, Camshaft Sprocket VM.9991 fits into place.

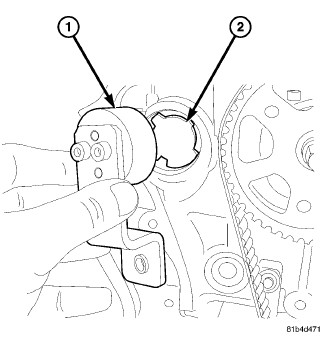

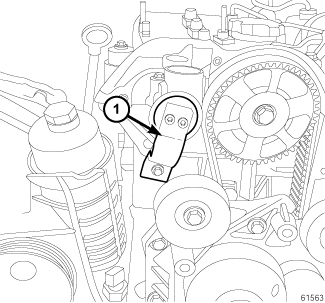

12. Install the Alignment Tool, Camshaft Sprocket VM.9991 (1) onto the camshaft position sensor tone wheel (2).




13. When the Alignment Tool, Camshaft Sprocket VM.9991 is bolted in place, the camshafts are locked at 90 degrees ATDC.

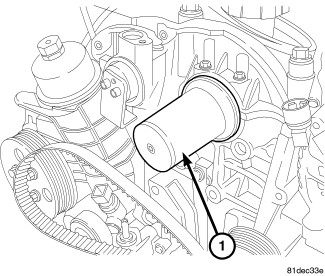

14. Using the Installer, Seal 9937-1 and Guide, Seal 9937-2 (1), install the intake camshaft oil seal.




15. Install the cylinder head cover (7) (Refer to 09 - Engine/Cylinder Head/COVER(S) , Cylinder Head - Installation).




16. Install the camshaft sprocket (2) (Refer to 09 - Engine/Valve Timing/SPROCKET(S) , Timing Belt and Chain - Installation).


17. Connect the negative battery cable.




CHECKING CAMSHAFT ENDPLAY

1. After camshafts are properly installed in cylinder head cover check end play of camshafts with a Set, Dial Indicator C-3339A . The end play should be between 0.10 mm - 0.55 mm .



   NOTE:

   If the camshaft endplay is not within specification, replace the cylinder head.



2. Measure the camshaft end play with a Set, Dial Indicator C-3339A . The end play should be between 0.15 mm 0.35 mm (0.006 in - 0.014 in.).
