SEAL(S), Camshaft

• INTAKE
• INTAKE

INTAKE

INTAKE

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

VM.1058 - Remover, Seal Originally Shipped In Kit Number(s) 9599.

1. Disconnect the negative battery cable.


2. Remove the intake camshaft sprocket (2) (Refer to 09 - Engine/Valve Timing/SPROCKET(S) , Timing Belt and Chain - Removal).




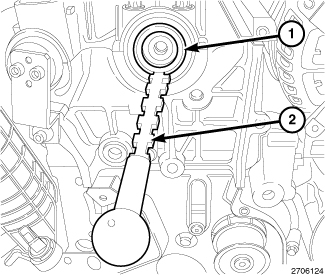

3. Install the Seal Remover VM.1058 (2) into seal (1) as illustrated.

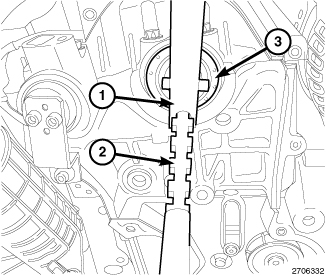

4. Position the Seal Remover Handle VM.1058 (1) onto Seal Remover VM.1058 (2) and remove the intake camshaft oil seal (3).




INTAKE

INTAKE

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	9937-1 - Installer, Seal Originally Shipped In Kit Number(s) 9937.
	9937-2 - Guide, Seal Originally Shipped In Kit Number(s) 9937.

1. Use the Seal Installer 9937-1 and 9937-2 (1) to install the intake camshaft oil seal.




2. Install the camshaft sprocket (2) (Refer to 09 - Engine/Valve Timing/SPROCKET(S) , Timing Belt and Chain - Installation).


3. Connect the negative battery cable.
