HANDLE, Exterior

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

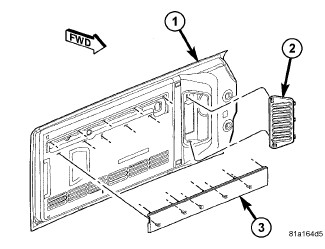

1. Using a trim stick C-4755 or equivalent, remove the inner latch trim (2).

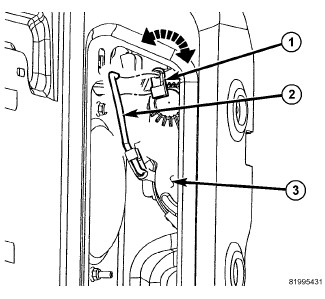

2. Disconnect the latch rod (2) from the handle (1).

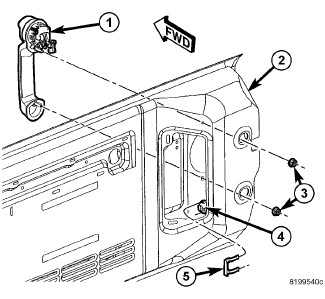

3. Remove the nuts (3) and remove the handle (1).




INSTALLATION

INSTALLATION

1. Install the handle (1) and install the nuts (3).


2. Tighten the nuts to 4.5 Nm (40 in. lbs.)




3. Connect the latch rod (2) to the handle (1).




4. Position the latch trim (2) onto the tailgate opening and seat fully.
