HOUSING-AIR INLET

HOUSING-AIR INLET



NOTE:

LHD model shown. RHD model similar.



NOTE:

If the foam seal on the top of the inlet housing is deformed or damaged, the seal must be replaced.

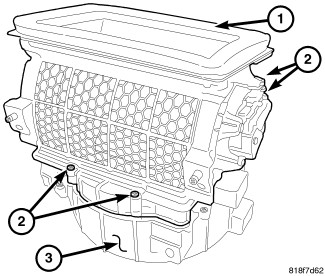

  1. Position the air inlet housing (1) onto the top of the HVAC housing (3).

    2.
  2. Install the four screws (2) that secure the air inlet housing to the HVAC housing. Tighten the screws to 1.2 N·m (10 in. lbs.).

    3.
  3. If equipped, install the particulate air filter (Refer to 24 - Heating and Air Conditioning/Distribution/FILTER, Particulate Air - Installation) .

    4.
  4. Install the HVAC housing assembly (Refer to 24 - Heating and Air Conditioning/Distribution/HOUSING, HVAC - Installation) .
