CYLINDER, Door Lock

REMOVAL

REMOVAL

  1. Remove the carrier plate. (Refer to 23 - Body/Door - Front/PLATE, Carrier - Removal) .

    2.

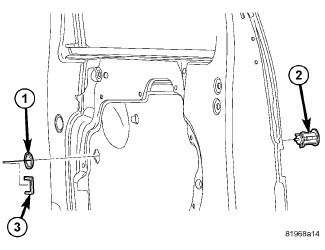

  2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1), from the door.

    3.

INSTALLATION

INSTALLATION

  1. Assemble the gasket (1) onto the lock cylinder (2), until fully seated.

    2.
  2. Install the lock cylinder (2) into the hole in the outer door panel.

    NOTE:

    The cylinder post must point forward.


    NOTE:

    The cylinder drain hole must point down.


    3.
  3. While holding the lock cylinder (2) in place, slide the retainer clip (3) onto the lock cylinder.

    NOTE:

    Visually verify that the pin on the lock cylinder is engaged with the bell crank on the door module, at door module install.



    4.
  4. Install the carrier plate. (Refer to 23 - Body/Door - Front/PLATE, Carrier - Installation) .
