PANEL, Door Trim

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4829A - Remover, Trim

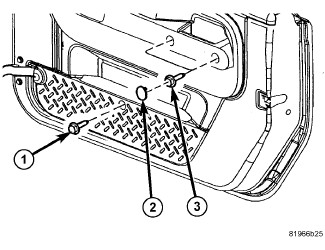

1. Remove the trim caps (2) and remove the pull handle screws (3).


2. Remove the lower screw (1).





3. Using a trim stick C-4829A or equivalent, separate the push pin fasteners (1) and remove the trim panel (2).




INSTALLATION

INSTALLATION

1. Position the trim panel (2) into place and seat the push pin fasteners (1) fully.




2. Install the lower screw (1).


3. Install the pull handle screws (3) and install the trim caps (2).
