HANDLE, Exterior

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

1. Remove the carrier plate (6), (Refer to 23 - Body/Doors - Rear/PLATE, Carrier - Removal)

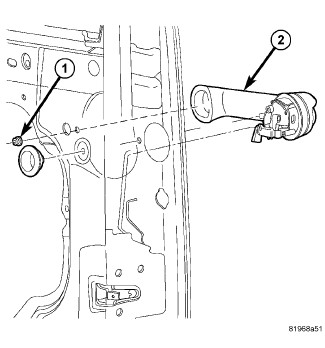

2. Remove the nuts (1) and remove the handle (2).




INSTALLATION

INSTALLATION

1. Install the handle (2) and install the nuts (1).


2. Tighten the nuts to 4.5 N·m (40 in. lbs.).





3. Install the carrier plate (6), (Refer to 23 - Body/Doors - Rear/PLATE, Carrier - Installation) .
