HANDLE, Exterior

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

1. Remove the trim panel (1), (Refer to 23 - Body/Doors - Rear/PANEL, Rear Door Trim - Removal) .

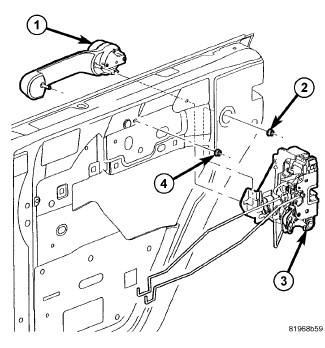

2. Remove the handle nuts (4) and (2) and remove the handle (1).




INSTALLATION

INSTALLATION

1. Install the handle (1) and install the nuts (4) and (2).


2. Tighten the nuts to, 4.5 N·m (40 in. lbs.).





3. Install the trim panel (1), (Refer to 23 - Body/Doors - Rear/PANEL, Rear Door Trim - Installation) .
