2012 Jeep Wrangler JK Factory Service Manual 23 - Body

HANDLE, Interior

REMOVAL

REMOVAL

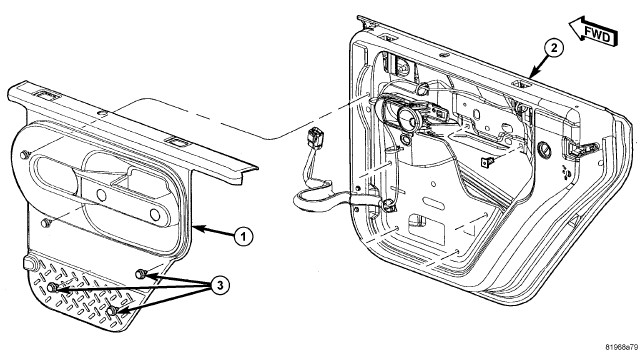

  1. Remove the door trim panel (1), (Refer to 23 - Body/Doors - Rear/PANEL, Rear Door Trim - Removal)


    2.

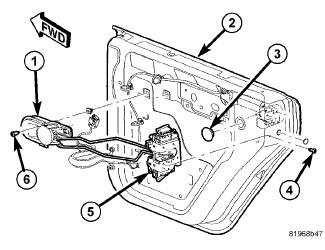

  2. Remove the screw (6) securing the inside handle (1) to the door (2).

    NOTE:

    Full front door shown, half door similar.


    3.
  3. Release the clips (4) and disconnect the handle rods (1).

    4.
  4. Slide the handle (3) off of the retaining tabs (2) and remove.

    5.

INSTALLATION

INSTALLATION

NOTE:

Full door shown, half door similar.

  1. Position the handle (3) onto the carrier plate tabs (2) and slide into place fully.

    2.
  2. Connect the rods (1) and secure the clips (4).

    3.
  3. Install the handle screw (6) and tighten to 8.5 N·m (75 in. lbs.).

    4.
  4. Install the trim panel (1), (Refer to 23 - Body/Doors - Rear/PANEL, Rear Door Trim - Installation)
