PANEL, Rear Door Trim

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4829A - Remover, Trim

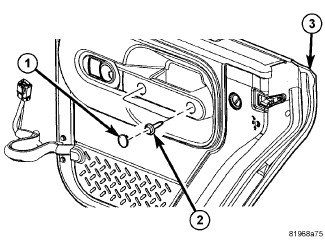

1. Remove the pull handle trim plugs (1) and remove the pull handle screws (2).





2. Using a trim stick C-4829A or equivalent, separate the all the push pin fasteners (3) and remove the trim panel (1).




INSTALLATION

INSTALLATION

1. Position the trim panel (1) into place and seat the push pin fasteners (3) fully.




2. Install the pull handle screws (2) and install the trim caps (1).
