WINDOW

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

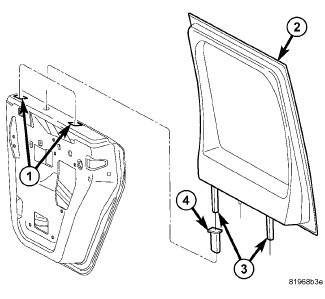

1. Open the door and lift the window (2) out of the mounting holes (1).




INSTALLATION

INSTALLATION

1. If necessary, install the grommets (4) into the door holes (1) and seat fully.


2. Install the window (2) into the grommets (4) and seat fully.
