2012 Jeep Wrangler JK Factory Service Manual 05 - Brakes, ABS

SENSOR, Wheel Speed, Rear

REMOVAL

REMOVAL

  1. Raise and support the vehicle.

    2.

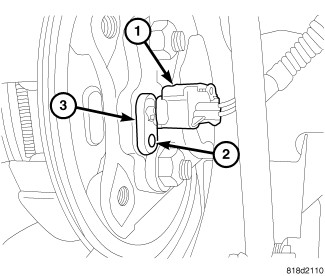

  2. Disconnect the wheel speed sensor electrical connector (1).

    3.
  3. Remove the wheel speed sensor mounting bolt (2) from the rear support plate.

    4.
  4. Remove the wheel speed sensor (3).

    5.

INSTALLATION

INSTALLATION

  1. Insert the wheel speed sensor (3).

    2.
  2. Tighten the wheel speed sensor bolt (2) to 12-14 N·m (106-124 in. lbs.).

    3.
  3. Reconnect the wheel speed sensor electrical connector (1).

    4.
  4. Lower the vehicle.

    5.
