2012 Jeep Wrangler JK Factory Service Manual 09 - Engine, 3.6L

FLEXPLATE

REMOVAL

REMOVAL

  1. Remove the transmission .

    2.

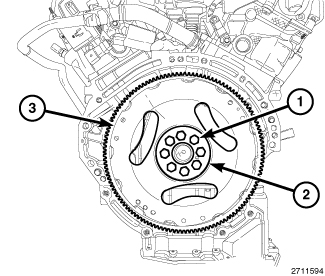

  2. Remove the bolts (1) and the spacer plate (2).

    3.
  3. Remove the flexplate (3).

    4.

INSTALLATION

INSTALLATION

  1. Position the flexplate (3) onto the crankshaft.

    2.
  2. Install the spacer (2) and the bolts (1) hand tight.

    3.
  3. Tighten the flexplate retaining bolts (1) to 95 N·m (70 ft. lbs.) in a criss-cross pattern.

    4.
  4. Install the transmission .

    5.
