2012 Jeep Wrangler JK Factory Service Manual 09 - Engine, 2.8L Diesel

INSULATOR, Engine Mount, Right

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

  1. Disconnect the negative battery cable.

    NOTE:

    The viscus fan does not need to be totally removed from vehicle only from the mounting drive.


    2.
  2. Remove the viscus fan and position aside (Refer to 07 - Cooling/Engine/DRIVE, Fan - Removal) .

    3.
  3. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .

    4.
  4. Remove the right side and left side lower engine mount nuts.

    5.
  5. Install the Fixture, Driveline Support 8534B .

    6.
  6. Raise the engine.

    7.
  7. Remove the inner fender (Refer to 23 - Body/Exterior/SHIELD, Splash - Removal) .

    8.

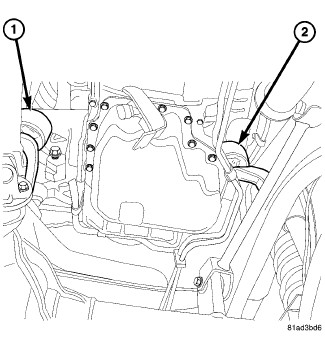

  8. Remove upper nut, and the right engine mount (2).

    9.

INSTALLATION

INSTALLATION

Special Tools: Click to display a list of tools used in this procedure

  1. Position the right engine mount (2) and install the retaining nut finger tight.

    2.
  2. Lower the vehicle.

    3.
  3. Lower the engine.

    4.
  4. Remove the Fixture, Driveline Support 8534B .

    5.
  5. Install the viscus fan (Refer to 07 - Cooling/Engine/DRIVE, Fan - Installation) .

    6.
  6. Tighten the right upper engine mount through bolts to 54 N·m (40 ft. lbs.).

    7.
  7. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .

    8.
  8. Install the left and right lower engine mount nut. Tighten nut to 54 N·m (40 ft. lbs.).

    9.
  9. Lower the vehicle.

    10.
  10. Install the right inner splash shield (Refer to 23 - Body/Exterior/SHIELD, Splash - Installation) .

    11.
  11. Connect the negative battery cable.

    12.
