2012 Jeep Wrangler JK Factory Service Manual 23 - Body

COVER, Cowl Panel

REMOVAL

REMOVAL

  1. Remove the wiper arms, (Refer to 08 - Electrical/8R - Wipers/Washers/ARM, Wiper - Removal) .

    2.

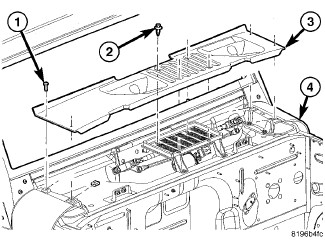

  2. Remove the bolts (1) from the cowl trim panel (3).

    3.
  3. Remove the push/pins (2) from the cowl trim panel (3).

    4.
  4. Remove the cowl trim panel (3) from the body (4) of the vehicle.

    5.

INSTALLATION

INSTALLATION

  1. Install the cowl trim panel (3) to the body (4) of the vehicle.

    2.
  2. Install the push/pins (2) to the cowl trim panel (3).

    3.
  3. Install the bolts (1) to the cowl trim panel (3).

    4.
  4. Install the wiper arms, (Refer to 08 - Electrical/8R - Wipers/Washers/ARM, Wiper - Installation) .

    5.
