STEP, Side

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

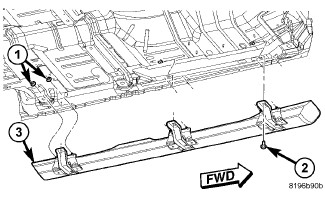

1. Remove the bolts (2).


2. Remove the sill nuts (1) and separate the step (3) from the sill flange.




INSTALLATION

INSTALLATION

1. Position the side step studs through the holes in the body side flange.


2. Install the nuts (1) and tighten to 12 N·m (9 ft. lbs.).


3. Install the bolts (2) and tighten to 24 N·m (18 ft. lbs.)
