HITCH, Trailer

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

1. Separate the wire harness (2) from the trailer hitch (1).

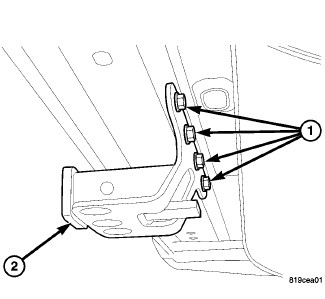

2. Remove the trailer hitch bolts (1) and remove the hitch (2).




INSTALLATION

INSTALLATION

1. Install the hitch (2) and install the bolts (1).


2. Tighten the bolts to 81 N·m (60 ft. lbs.)




3. Install the wire harness connector (2) onto the hitch (1).
