BEARING, Differential Side

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	C-293-PA - Puller, Press Originally Shipped In Kit Number(s) 8418, 8837, C-293-M.
	C-293-39 - Block Set, Puller Originally Shipped In Kit Number(s) 8418, C-293-M, DD-914-CLT-L.
	SP-3289 - Extension, Puller Originally Shipped In Kit Number(s) 9599.

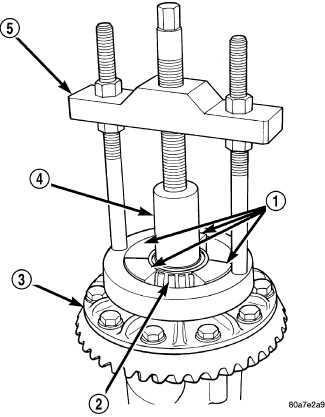

1. Remove bearings (2) from the differential case (3) with Puller C-293-PA (5) Adapter C-293-39 (1) and Plug SP-3289 (4).




INSTALLATION

INSTALLATION

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	C-3716-A - Installer, Bearing Originally Shipped In Kit Number(s) 9975.
	C-4171 - Driver Handle, Universal Originally Shipped In Kit Number(s) 9202, 9202A-CAN, 9202CC, 9299, 9299CC, 9299CC, 9300A-CAN.

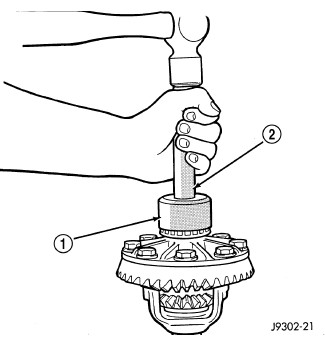

1. Install differential side bearings with Installer C-3716-A (1) and Handle C-4171 (2).
