COIL, Differential

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	C-293-PA - Puller, Press Originally Shipped In Kit Number(s) 8418, 8837, C-293-M.
	C-293-3 - Adapter, Bearing/Gear Originally Shipped In Kit Number(s) 8418, 8837, C-293-M, C-4246-AL, DD-914-CLT-L.
	C-293-47 - Block Set, Puller Originally Shipped In Kit Number(s) 9975, C-293-M, DD-914-CLT-L.

1. Remove differential case from axle housing.

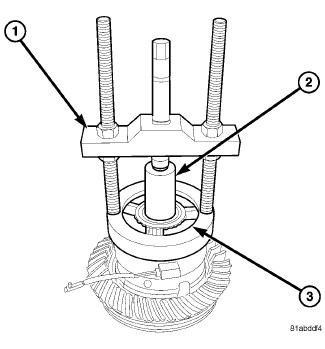

2. Remove bearing from the coil side of the differential case with Puller C-293-PA (1), Plug C-293-3 (2), and Adapters C-293-47 (3).

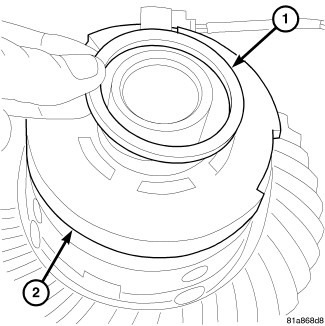

3. Remove thrust washer (1) from differential case and coil (2).

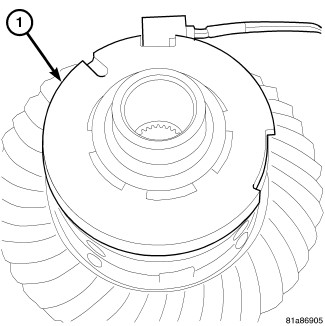

4. Remove coil (1) from differential case.




INSTALLATION

INSTALLATION

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	C-4213 - Installer, Bearing Originally Shipped In Kit Number(s) 9685, 9695, 9720-SUP, 9945-SUP2, 9995.
	C-4171 - Driver Handle, Universal Originally Shipped In Kit Number(s) 9202, 9202A-CAN, 9202CC, 9299, 9299CC, 9299CC, 9300A-CAN.

1. Install coil (1) on differential case.




2. Install thrust washer (1) on top of the coil (2).

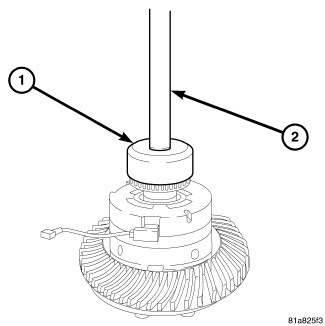

3. Install differential side bearing with Installer C-4213 (1) and Handle C-4171 (2).


4. Install differential into the housing.
