2012 Jeep Wrangler JK Factory Service Manual 14 - Fuel System

SENSOR, Accelerator Pedal Position

REMOVAL

REMOVAL

NOTE:

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

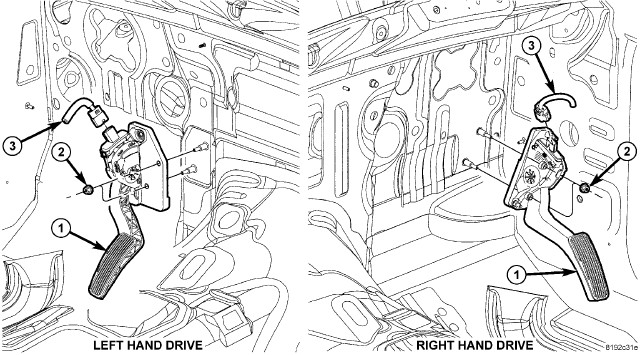

  1. Disconnect electrical connector (3) at APPS.

    2.
  2. Remove two accelerator pedal mounting bracket nuts (2).

    3.
  3. Remove accelerator pedal/APPS assembly (1) from vehicle.

    4.

INSTALLATION

INSTALLATION

NOTE:

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

  1. Position accelerator pedal/APPS assembly over two mounting studs.

    2.
  2. Install two accelerator pedal mounting bracket nuts (2) and tighten to 11 N·m (97 in. lbs.).

    3.
  3. Connect the APPS wire harness connector (3).

    4.
  4. Before starting engine, operate accelerator pedal to check for any binding.

    5.
