2012 Jeep Wrangler JK Factory Service Manual 23 - Body

LATCH, Safety

REMOVAL

REMOVAL

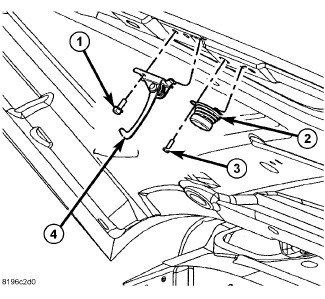

  1. Remove the bolt (1) and remove the safety catch (4).

    2.

INSTALLATION

INSTALLATION

  1. Install the safety catch (4) and install the bolt (1).

    2.
  2. Tighten the bolt to 11 N·m (8 ft. lbs.).

    3.
