COVER, Steering Column Opening

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

1. Using a trim stick C-4755 or equivalent, release the upper clips (1) and rotate the steering column opening cover (2) down and remove from lower tabs.

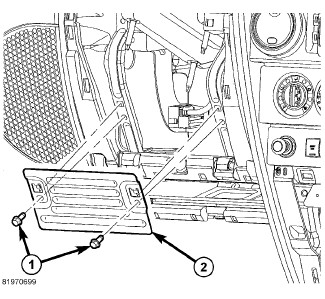

2. Remove the bolts (1) and remove the reinforcement plate (2).




INSTALLATION

INSTALLATION

1. Install the reinforcement plate (2) and install the bolts (1).


2. Tighten the bolts (1) to 11 N·m (8 ft. lbs.).




3. Position the steering column opening cover (2) onto the lower tabs, rotate up and seat the four clips (1) fully.
