HANDLE, Grab

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

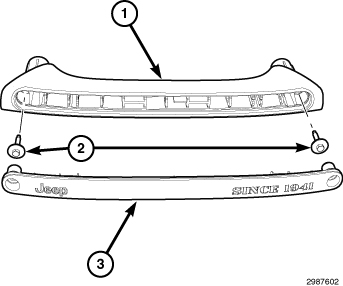

1. Using a trim stick C-4755 or equivalent, separate and remove the grab handle trim cover (3).


2. Remove the bolts (2) and remove the grab handle (1).




INSTALLATION

INSTALLATION

1. Install the grab handle (1) and install the bolts (2).


2. Install the trim cover (3) onto the handle (1) and seat fully.
