PANEL, A-Pillar Trim

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

1. Remove the sun visor (4), (Refer to 23 - Body/Interior/VISOR - Removal) .

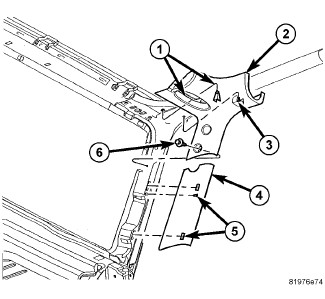

2. Remove the push pin fastener (6).


3. Using a trim stick C-4755 or equivalent, separate the retaining clips (3) and remove the upper A-pillar trim (2).


4. Using a trim stick C-4755 or equivalent, separate the retaining clips (5) and remove the lower A-pillar trim (4).




INSTALLATION

INSTALLATION

1. Position the lower A-pillar trim (4) onto the A-pillar and seat the clips (5) fully.


2. Position the upper A-pillar trim (2) onto the A-pillar and seat the clips (3) fully.


3. Install the push pin fastener (6).




4. Install the visor (4), (Refer to 23 - Body/Interior/VISOR - Installation) .
